RAK Ecofix Concealed Toilet Support Frame with 80mm Concealed Cistern 1140mm High - Orange/White
RAK Ecofix Concealed Toilet Support Frame with 80mm Concealed Cistern 1140mm High - Orange/White

RAK Ecofix Concealed Toilet Support Frame with 80mm Concealed Cistern 1140mm High - Orange/White

£207.95

Inc. VAT
£367.50 SAVE £159.55 In Stock

RAK Ecofix FS04RAK8C Wall Hung Frame Features:


  • Flush Plate is sold separately (See the You May Need)
  • Not suitable to be fitted in furniture
  • Comes complete with 8cm concealed cistern
  • Comes complete with adjustable leg
  • Leg supports adjustable from 0-120mm
  • Suitable use for wall hung pans
  • Flush capacity: 6/3L adjustable to 4.5/3L
  • Easy to install
  • Supplied with 2 year guarantee for total peace of mind

RAK Ecofix FS04RAK8C Video:

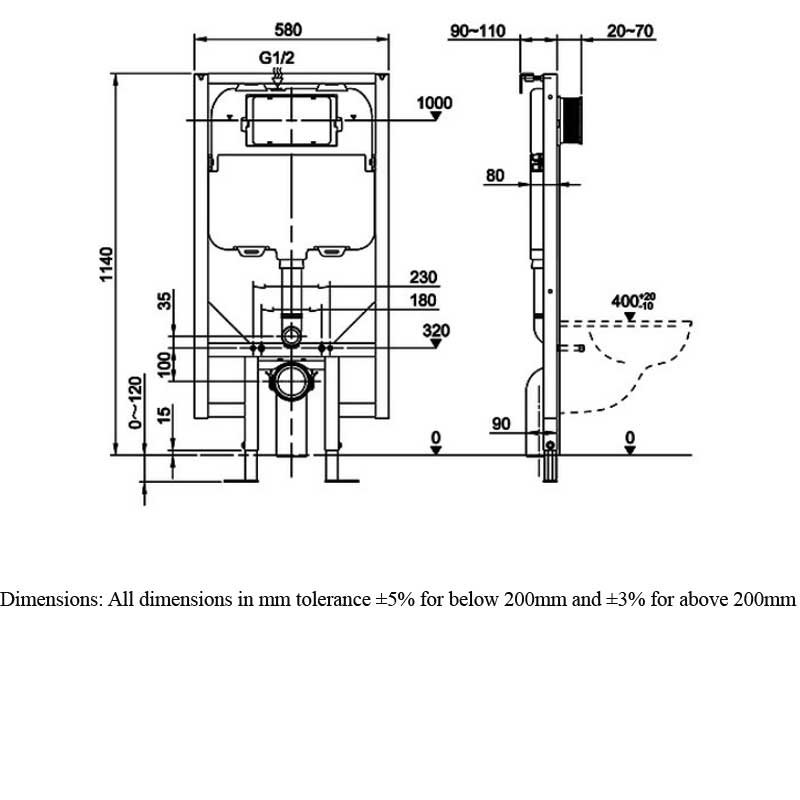

RAK Ecofix FS04RAK8C Wall Hung Frame Specifications:


Wall Hung Frame Type Toilet
Frame Height 1140mm
Frame Width 580mm
Mounting Wall
Cistern Full Flush 6/4.5 Litre
Cistern Half Flush 3 Litre
Material Metal
Colour Orange/White
Brand RAK Ceramics
Collection Ecoflix
Style Modern
Market Domestic
EAN Barcode 5056176003586
Manufacturer Part Number(s) FS04RAK8C


RAK Ecofix Concealed Toilet Support Frame with 80mm Concealed Cistern 1140mm High - Orange/White
RAK Ecofix Concealed Toilet Support Frame with 80mm Concealed Cistern 1140mm High - Orange/White
(RAKFS04RAK8C)
£207.95
Suitable Flush Plate
RAK Ceramics Rectangular Push Plate for all Concealed Cisterns - Matt Chrome
RAK Ceramics Rectangular Push Plate for all Concealed Cisterns - Matt Chrome
(RAKFS04RAKCPM8C)
£24.95
