Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator
Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator Ultraheat Planal PHS Double Panel Plus Radiator

Ultraheat Planal PHS Double Panel Plus Radiator

Quick Code: 2000014
Ref: UHPLNPHS
Ultraheat
£116.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £9.75 at 0% APR using PayPal.

Height:

Select Height to view available option

Select Radiator Valves:

In Stock

Usually delivered within 4 working days

Other Options Available:

Other versions of this product are available

Free Delivery Available

Delivery postcode restrictions apply

Check

The ultra-stylish Planal radiator from Ultraheat is defined by a bold, easy-clean flat panel that brings aesthetic appeal to the otherwise-dull world of central heating. Available in a large range of sizes, this Planal model is part of a range of over 200 different sizes, makin it the perfect option for a renovation, new build or office space.

These "PHS" models are of a Type 21 configuration - also known as a Double Panel Plus or P+ - featuring a front and back panel with a single set of convector fins.

The Planal collection of radiators also features "PSS" Type 11 and "PDS" Type 22 models for different heating requirements.

Product Features

  • Stylish modern design with easy-clean flat panel
  • Available in an extensive range of over 40 sizes, including 4 different heights
  • Multiple width increments up to 2000mm - more sizes available than other leading manufacturers
  • PHS models are equivalent to Type 21 - featuring a front and back panel with a single set of convector fins
  • High-quality powder-coated finish in RAL 9016 Traffic White
  • Suitable for standard central heating systems with an operating pressures of up to 10 bar
  • Maximum working temperature of 95 degrees celsius
  • Standard side entry points and European bottom entry points both supported
  • Comes complete with a 5 year guarantee from Ultraheat

Important Information

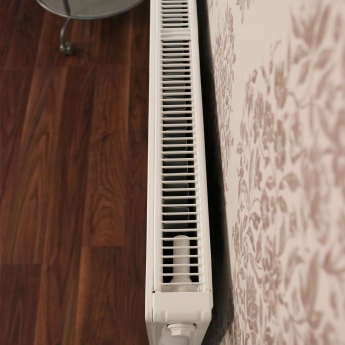

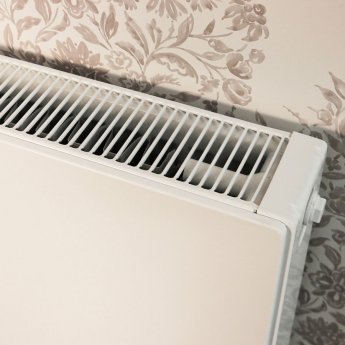

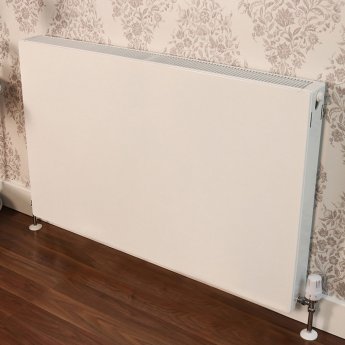

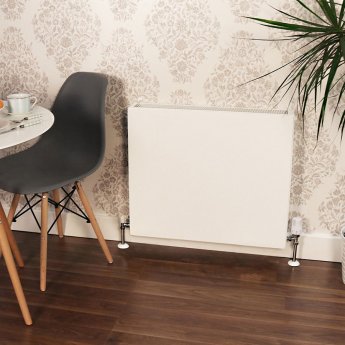

  • The images provided by the manufacturer show a "PDS" version of the radiator (Type 22)
Show More

Radiator TypePanel
Panel TypeType 21 - Double Panel Plus
Radiator DesignFlat Panel
Radiator Height400mm, 500mm, 600mm, 700mm
Radiator Width400mm, 500mm, 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1400mm, 1600mm, 1800mm, 2000mm
Radiator Depth71mm
Wall to Front93 or 104mm
Wall to Pipe Centres56 or 67mm
OrientationHorizontal
FuelCentral Heating
MaterialMild Steel
ColourWhite
Inlet Connection Size1/2 BSP
Connections PositionSide
BrandUltraheat
CollectionPlanal
