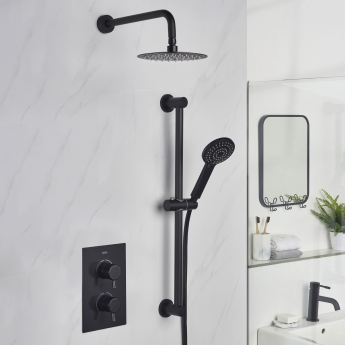

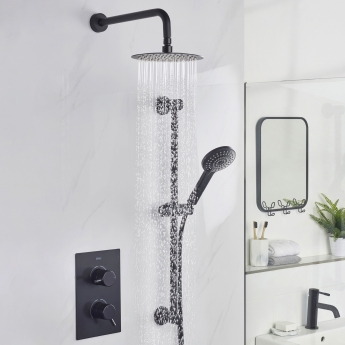

Bristan Prism Recessed Dual Concealed Mixer Shower with Shower Kit and Fixed Head - Black

Product Features

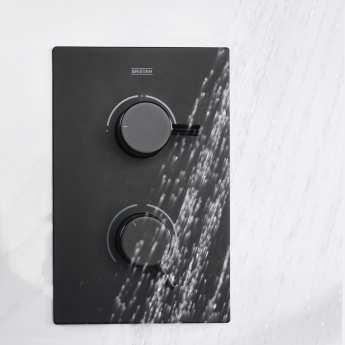

• This versatile shower pack contains a Black Prism shower valve with integral two outlet diverter

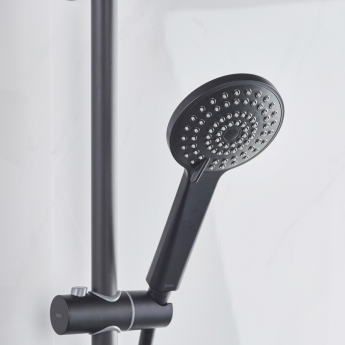

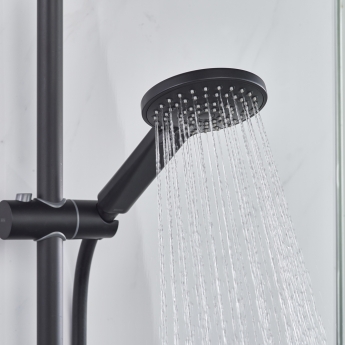

• It has a slimline 200mm round fixed head with shower arm; and shower kit with an adjustable riser rail, multi function handset and outlet
• Adjustable fixing brackets on riser rail enables existing screw holes to be used
• A black finish that will make a statement in any bathroom
• Integral two outlet diverter so you can easily switch between the handset or drench head
• The shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
• Limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles
• Thermostatic cartridge with preset temperature safety stop at 42 degree C for family-safe showering
• Automatic shut-off in the event of hot or cold water supply failure for family safe showering
• A higher temperature can be selected, if required, by selecting the override function
• Dual control - flow and temperature are controlled separately
• Cartridge can be accessed from the front for easy servicing
• Fully serviceable from the front
• 15mm inlet connections
• Rub-clean anti-limescale fixed head and handset
• Body is of brass construction
• Suitable for all plumbing systems
• Metal back plate and handles for added durability
• Guarantee: 5 years including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
• Through Handset (mixed): 0.2 Bar- 2.3 l/min, 0.5 Bar - 4.2 l/min, 1.0 Bar - 6.4 l/min, 2.0 Bar - 8.4 l/min, 3.0 Bar - 9.6 l/min, 5.0 Bar - 10.4 l/min
• Through Fixed Head (mixed): 0.2 Bar- 3.5 l/min, 0.5 Bar - 6.1 l/min, 1.0 Bar - 7.9 l/min, 2.0 Bar - 9 l/min, 3.0 Bar - 9.2 l/min, 5.0 Bar - 9.3 l/min
• Through Handset (without flow regulators): 0.2 Bar- 2.9 l/min, 0.5 Bar - 5 l/min, 1.0 Bar - 7.5 l/min, 2.0 Bar - 11 l/min, 3.0 Bar - 13 l/min, 5.0 Bar - 17.4 l/min
• Through Fixed Head (without flow regulators): 0.2 Bar- 5.9 l/min, 0.5 Bar - 10.4 l/min, 1.0 Bar - 15.3 l/min, 2.0 Bar - 20.7 l/min, 3.0 Bar - 7.5 l/min, 5.0 Bar - 8.6 l/min
