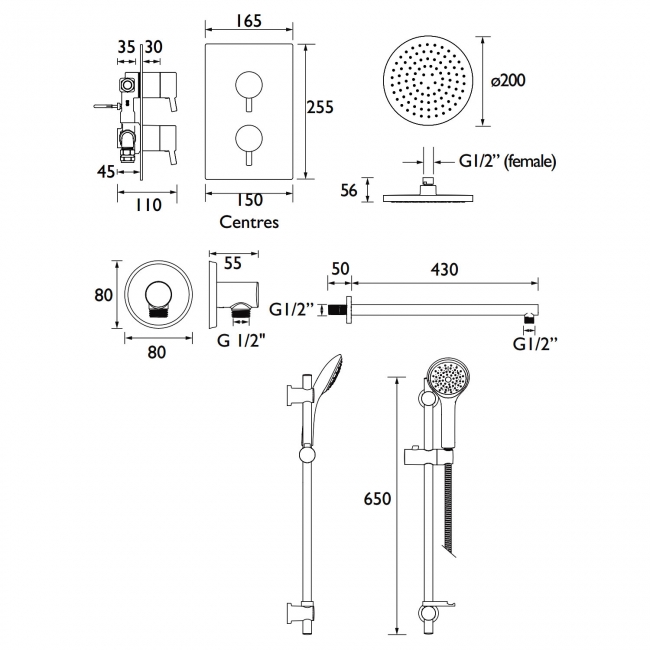

Bristan Prism Dual Concealed Mixer Shower with Shower Kit and Fixed Head

Product Features

• Our classic Prism shower valve with integral two outlet diverter
• 200mm round shower rose, shower arm, wall outlet and adjustable shower kit with single-function handset
• The shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
• Suitable for all plumbing conditions, preferably balanced
• Adjustable fixing brackets on riser rail enables existing screw holes to be used
• Rub clean handset and drench head
• Limescale and debris build-up is quickly and easily removed by rubbing a finger or a cloth over the nozzles
• Integral two outlet diverter so you can easily switch between the handset or drench head
• Thermostatic cartridge with preset temperature safety stop at 42 degree C for family-safe showering
• A higher temperature can be selected, if required, by selecting the override function
• 15mm inlet connections
• Fully serviceable from the front
• Chrome plated to BS EN 248
• Cartridge can be accessed from the front for easy servicing
• Dual control - flow and temperature are controlled separately
• Metal back plate and handles for added durability
• Automatic shut-off in the event of hot or cold water supply failure for family safe showering
• Wall outlet designed with Bristan's Wall Mount Technology for easier installation
• A hard-wearing, flawless, scratch resistant chrome finish that lasts for years
• Salt spray tested to ensure added durability
• Guarantee: Lifetime including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)
• Through Handset (mixed): 0.2 Bar- 2.1 l/min, 0.5 Bar - 3.3 l/min, 1.0 Bar - 4.7 l/min, 2.0 Bar - 6.6 l/min, 3.0 Bar - 8.1 l/min, 5.0 Bar - 10.5 l/min
• Through Fixed Head (mixed): 0.2 Bar- 2.2 l/min, 0.5 Bar - 3.5 l/min, 1.0 Bar - 5 l/min, 2.0 Bar - 7 l/min, 3.0 Bar - 8.6 l/min, 5.0 Bar - 11.1 l/min
• With Flow Limiters (valve only; mixed): 0.2 Bar- 3.9 l/min, 0.5 Bar - 7 l/min, 1.0 Bar - 9.4 l/min, 2.0 Bar - 11.1 l/min, 3.0 Bar - 11.2 l/min, 5.0 Bar - 12.2 l/min
