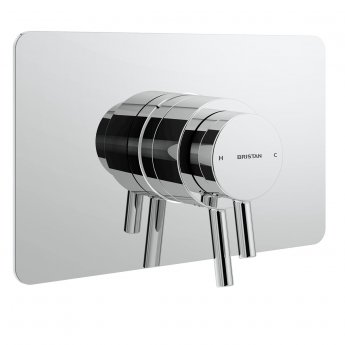

Bristan Prism Concealed Concentric Shower Valve Only - Chrome | Product Image

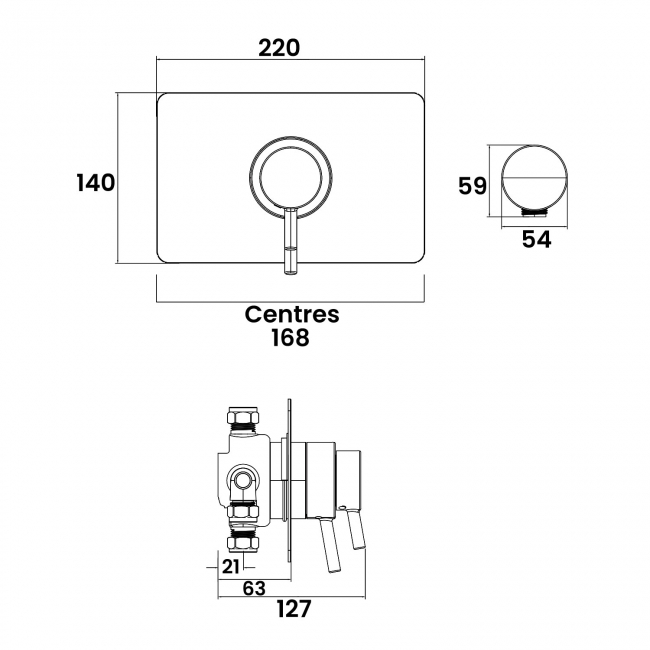

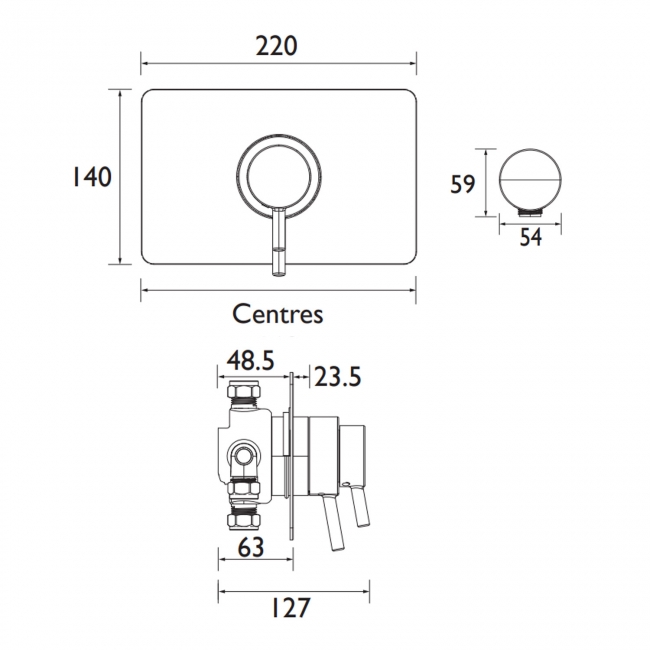

Bristan Prism Concealed Concentric Shower Valve Only - Chrome | Dimension Image

Bristan Prism Concealed Concentric Shower Valve Only - Chrome

Name: Bristan Prism Concealed Concentric Shower Valve Only - Chrome
Brand: Bristan
SKU: BNPM2CSHCVOC
Price: 467.95 GBP
Availability: InStock

Quick Code: 2797721

Ref: BNPM2CSHCVOC

(No Reviews)

£467.95 Inc. VAT

You May Need

Add to Basket

In Stock

Usually delivered within 2 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Bristan Hourglass Thermostatic Recessed Dual Control Shower Valve - Chrome

£317.95

In Stock

2 Days

Bristan Saffron Recessed 1 Outlet Concealed Shower Valve Dual Handle - Chrome

£292.95

In Stock

2 Days

Bristan Artisan Recessed Concealed Shower Valve Dual Handle - Chrome

£254.95

In Stock

2 Days

Bristan Cobalt Thermostatic Recessed Dual Control Shower Valve Only - Chrome

£256.95

In Stock

2 Days

Bristan Sail Thermostatic Recessed Dual Control Shower Valve with Two Outlet Diverter - Chrome

£373.95

Out of Stock

Product Features

Shower valve supplies water to 1 outlet
Thermostatic cartridge with preset temperature stop at 42 degree celsius
Supplied with 2 x 8L/min flow regulators
Supplied with Easyfit wall outlet
Twin handle valve only
This shower valve has been designed to fit in any UK wall cavity and therefore only needs a 35mm deep cavity space
Valve will fit in 35mm cavity space
Approved and tested under WRAS
Guarantee: Lifetime including parts (1 year on labour and 3 year on Gold, Painted and other Special Finishes)

Shower Type	Mixer
Temperature Control	Thermostatic
Operation	Lever
Valve Position	Concealed
Valve Controls	2
Valve Outlets	1
Backplate Shape	Rectangular
Inlet Connection Size	15mm
Outlet Connection Size	1/2 BSP
Connection Centres	168mm
Valve Height	140mm
Valve Width	220mm
Valve Depth	63mm
Minimum Pressure	0.2 Bar
System Suitability	All Plumbing Systems
WRAS Approved	Yes
Valve Material	Brass
Colour/Finish	Chrome
Style	Modern
Brand	Bristan
Collection	Prism
EAN Barcode	5014868043074
Manufacturer Part Number	PM2 CSHCVO C
Flow Rate @ 0.2 Bar	With Flow Regulators: 3.4 l/min, Without Flow Regulates: 9.0 l/min
Flow Rate @ 0.5 Bar	With Flow Regulators: 5.4 l/min, Without Flow Regulates: 15.5 l/min
Flow Rate @ 1.0 Bar	With Flow Regulators: 7.8 l/min, Without Flow Regulates: 22.5 l/min
Flow Rate @ 2.0 Bar	With Flow Regulators: 11.3 l/min, Without Flow Regulates: 31.8 l/min
Flow Rate @ 3.0 Bar	With Flow Regulators: 11.1 l/min, Without Flow Regulates: 39 l/min
Flow Rate @ 5.0 Bar	With Flow Regulators: 11.4 l/min, Without Flow Regulates: 50.3 l/min
