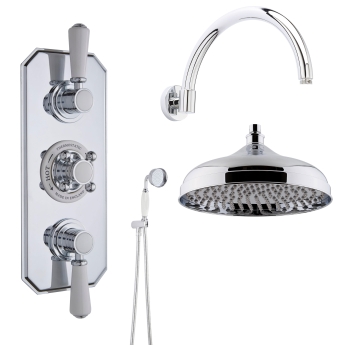

Delphi Windsor Chrome Triple Concealed Shower Set with Large Drencher Head and Handset
This Windsor set is a three handle concealed shower in chrome, feeding a 12 inch drencher on a 315mm curved arm and a telephone handset on its own round bracket. The wide stepped plate has the presence to carry three controls: the centre handle sets the temperature and the outer two open one outlet each.
That lets the overhead and the handset run on their own or both at once, which is why we specify it for larger period bathrooms. Valve, 300mm apron head, curved arm and the handset with its bracket and hose are supplied together for one price.
Bundle Contents
- 1 x Delphi Windsor Chrome 2-Outlet Triple Concealed Shower Valve
- 1 x Delphi Traditional Chrome Fixed Shower Head 300mm x 300mm
- 1 x Delphi Curved Chrome Shower Arm 315mm
- 1 x Delphi Traditional Chrome/White Shower Handset (inc Bracket and Hose)
Shower Valve Features
- Three-handle shower valve, including the concealing plate and valve body in one package
- Two outlets, each with its own control, so both accessories run alone or together

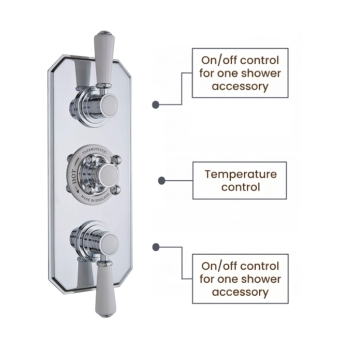

- Three controls: the centre one sets the temperature, the outer two open each outlet
- Thermostatic cartridge holds your set temperature to within 1 degree C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

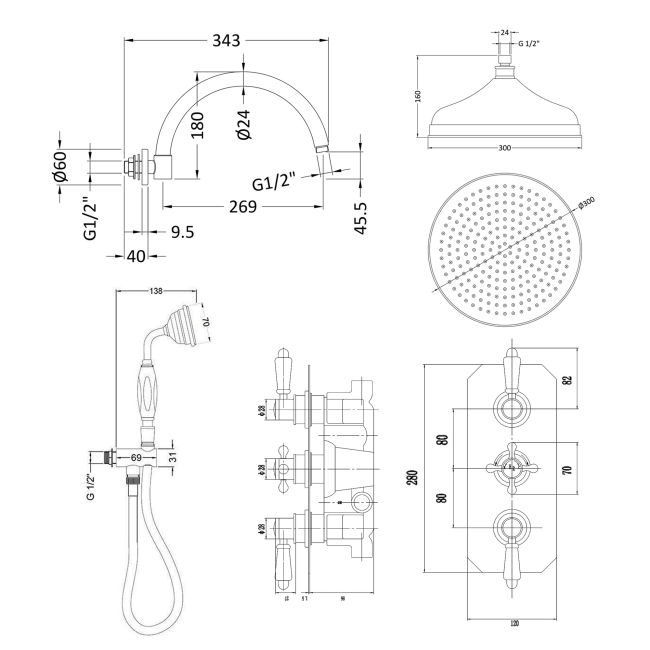

- 280mm x 120mm stepped plate, mitred at the corners, needing a recess 86mm deep
- Works from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 300mm diameter apron rose, a 12 inch traditional head with a domed body and stepped banded rim
- Machined from solid brass, giving it the weight the period styling implies
- Recessed spray plate, keeping the nozzles out of sight from below
- Single function, giving one wide and comparatively soft rainfall spray
- Matching curved arm projecting 315mm from the finished wall on a 60mm round flange
- 1/2 inch BSP connections between arm and head
Handset and Bracket Features
- Supplied with the traditional handset, hose, wall bracket and outlet elbow
- Round wall bracket fixed at one height, with the water outlet built into it
- Single function tapered rose with a plain spray face and white ceramic handle
- 1500mm flexible shower hose
- Solid brass construction with 1/2 inch BSP connections
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
