Delphi Windsor Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

Delphi Windsor Chrome Triple Concealed Shower Set with Fixed Head and Slide Rail Kit

The practical version of the triple Windsor shower: chrome, an 8 inch head, a 750mm rail, and three handles that let two people set the shower up the way they each prefer. The wide stepped plate is mitred at the corners and mixes a white ceramic lever with metal crossheads.

The centre control holds the temperature and the outer two open the overhead and the rail kit. Valve, 200mm apron head, 335mm round arm and slide rail kit are supplied together for one price with the outlet elbow included.

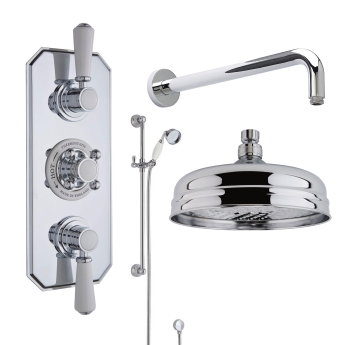

Bundle Contents

• 1 x Delphi Windsor Chrome 2-Outlet Triple Concealed Shower Valve
• 1 x Delphi Traditional Chrome Fixed Shower Head 200mm x 200mm
• 1 x Delphi Round Chrome Shower Arm 335mm
• 1 x Delphi Traditional Chrome/White Slider Rail Shower Kit (inc Outlet Elbow)

Shower Valve Features

• Three-handle shower valve, including the concealing plate and valve body in one package
• Two outlets, each with its own control, so both accessories run alone or together

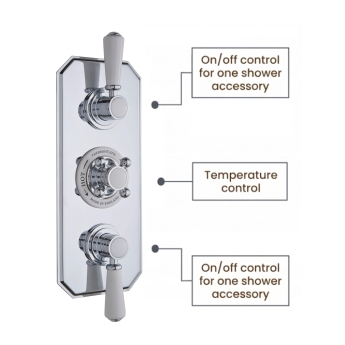

• Three controls: the centre one sets the temperature, the outer two open each outlet
• Thermostatic cartridge holds your set temperature to within 1 degree C
• TMV2 approved, so the flow shuts off if the cold supply fails
• WRAS approved for connection to the mains water supply
• Quarter turn ceramic disc cartridge, highly resistant to limescale
• 280mm x 120mm stepped plate, mitred at the corners, needing a recess 86mm deep
• Works from a minimum of 0.5 bar
• Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

• 200mm diameter apron rose, an 8 inch traditional head with a domed body and stepped banded rim
• 115mm deep overall, so it reads as brassware rather than a flat disc
• Machined from solid brass with a recessed spray plate hiding the nozzles
• Single function, delivering one soft, wide rainfall spray
• Matching round arm projecting 335mm from the finished wall on a 60mm round flange
• 1/2 inch BSP connections between arm and head

Slide Rail Kit Features

• 750mm rail, 70mm wide, projecting 150mm from the wall
• Lever operated bracket, so the handset locks at any height along the bar
• Single function tapered rose handset with classic white ceramic detailing
• 1500mm flexible shower hose
• Wall outlet elbow included, connecting the kit straight to the concealed valve
• Brass and ABS construction
• 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

• This is a two-outlet shower valve designed for two accessories only (both are included).
