Delphi Windsor Chrome Dual Concealed Shower Set with Large Drencher Head and Handset
This Windsor set was built for a full size period bathroom that wants both a drenching overhead and something to rinse with. A 12 inch domed rose reaches out on a deep curved arm, and a telephone handset sits on its own round wall bracket beneath, with white ceramic handles tying the two together against chrome plating.
The concealed thermostatic valve runs both accessories from two controls, one for temperature and one that turns the shower on and diverts between the overhead and the handset. Valve, 300mm head, 315mm curved arm and handset kit are supplied together for one price, outlet elbow included.

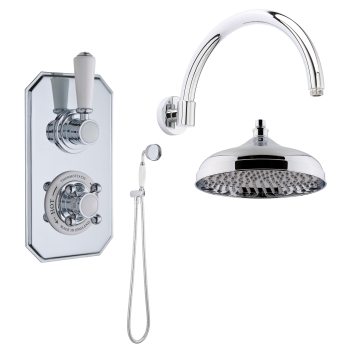

Bundle Contents
- 1 x Delphi Windsor Chrome 2-Outlet Dual Concealed Shower Valve
- 1 x Delphi Traditional Chrome Fixed Shower Head 300mm x 300mm
- 1 x Delphi Curved Chrome Shower Arm 315mm
- 1 x Delphi Traditional Chrome/White Shower Handset (inc Bracket and Hose)

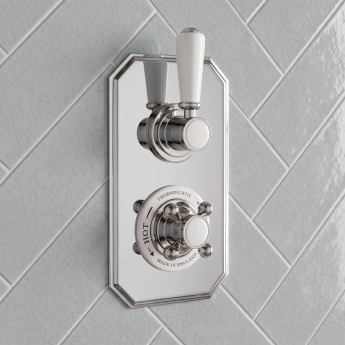

Shower Valve Features
- Two-handle shower valve, including the concealing plate and valve body in one package
- Two outlets fed through an integrated diverter, one for each accessory in the set

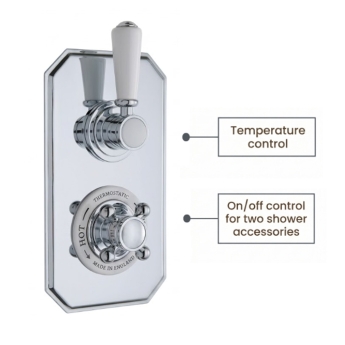

- Two controls: one sets the temperature, the other turns the shower on and diverts between outlets
- Thermostatic cartridge holds your set temperature to within 2 degrees C
- TMV2 approved, so the flow shuts off if the cold supply fails
- WRAS approved for connection to the mains water supply
- Quarter turn ceramic disc cartridge, highly resistant to limescale

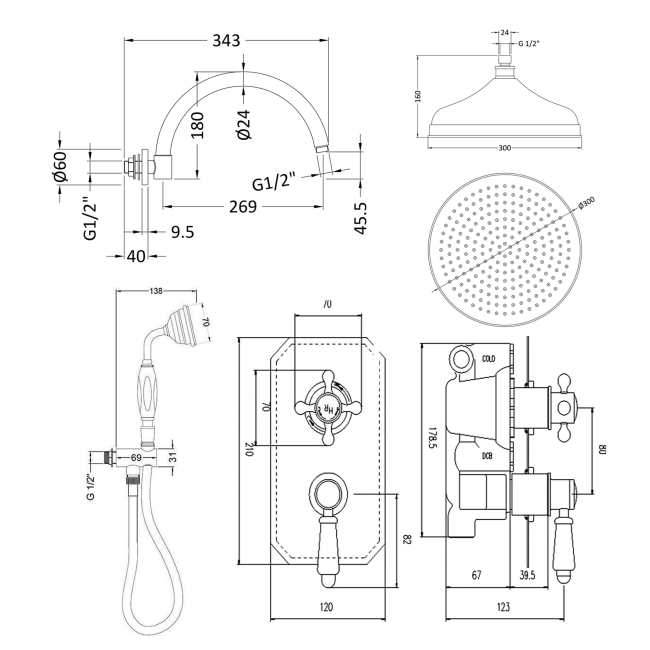

- 210mm x 120mm stepped plate, mitred at the corners, needing a recess 67mm deep
- 1/2 inch BSP inlets, working from a minimum of 0.5 bar
- Chrome finish, matched across every piece in the bundle
Fixed Shower Head and Arm Features
- 300mm diameter apron rose, a 12 inch traditional head with a domed body and stepped banded rim
- Machined from solid brass, giving it the weight the period styling implies
- Recessed spray plate, keeping the nozzles out of sight from below
- Single function, giving one wide and comparatively soft rainfall spray
- Matching curved arm projecting 315mm from the finished wall on a 60mm round flange
- 1/2 inch BSP connections between arm and head

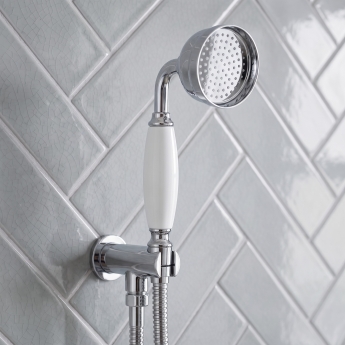

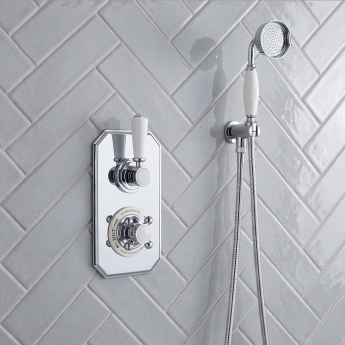

Handset and Bracket Features
- Supplied with the traditional handset, hose, wall bracket and outlet elbow
- Round wall bracket fixed at one height, with the water outlet built into it
- Single function tapered rose with a plain spray face and white ceramic handle
- 1500mm flexible shower hose
- Solid brass construction with 1/2 inch BSP connections
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a two-outlet shower valve designed for two accessories only (both are included).
