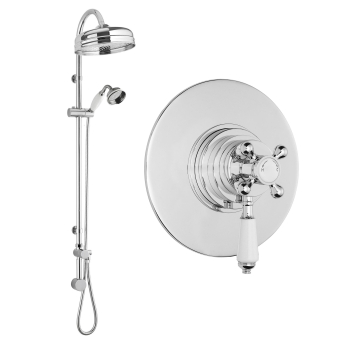

Delphi Windsor Chrome Dual Concentric Concealed Shower Set with Rigid Riser Kit
The concentric Windsor valve puts both controls on one round plate, a crosshead sitting directly above a white ceramic lever, which keeps the wall clear for the exposed pipework this set is really about. A chrome riser climbs to a 300mm drencher head on a swan neck arm, with a traditional telephone handset cradled below it.
The crosshead sets the temperature, the lever beneath it opens and closes the flow, and the valve feeds the riser kit, which carries its own diverter for switching between the drencher head and the handset. Valve and rigid riser kit are supplied together for one price, with the wall outlet elbow included.
Bundle Contents
- 1 x Delphi Windsor Chrome 1-Outlet Concentric Concealed Shower Valve
- 1 x Delphi Traditional Chrome/White Rigid Riser Concealed Shower Kit (inc Outlet Elbow)
Shower Valve Features
- Two-handle shower valve, including the concealing plate and the solid brass valve body in one package
- One outlet, feeding the riser kit, which carries its own diverter
- Two controls on one concentric spindle: crosshead for temperature, lever beneath for on and off
- Thermostatic cartridge holds your set temperature to within 1 degree C
- Shuts the flow off if the hot or cold supply fails, so it cannot run scalding hot
- Quarter turn ceramic disc cartridge, highly resistant to limescale

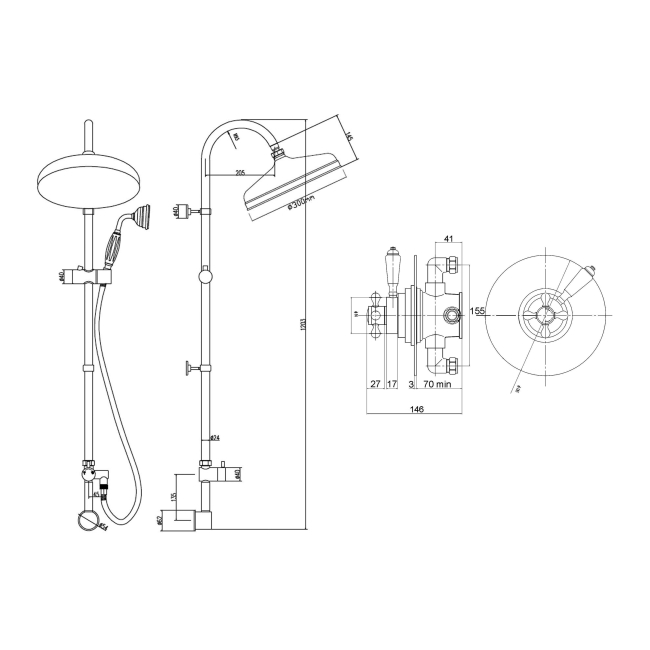

- 196mm x 185mm round plate, needing a recess 70mm deep in the wall
- 1/2 inch BSP inlets, working from a minimum of 1.0 bar
- Chrome finish, matched across every piece in the bundle
Rigid Riser Kit Features
- Diverter mounted on the riser switches the flow between the overhead head and the handset
- Exposed riser standing 1203mm tall and projecting 455mm from the wall
- 300mm diameter overhead drencher head carried on a curved traditional arm
- Single function white ceramic handled handset on a 1500mm flexible hose
- Fixed column, so the handset cradle sits at a set height
- Wall outlet elbow included, connecting the kit straight to the concealed valve
- Brass and ABS construction
- 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts
Important Information
- This is a one-outlet shower valve, with the diverter built into the riser kit, so it runs the overhead head and the handset supplied and no further accessories can be added.
