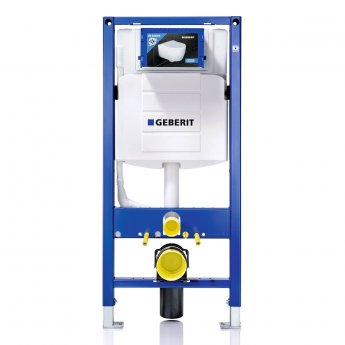

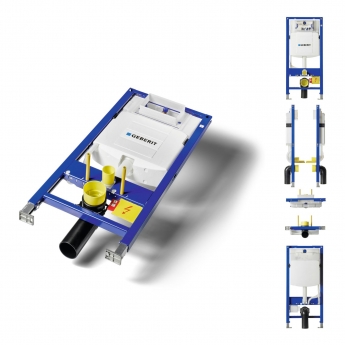

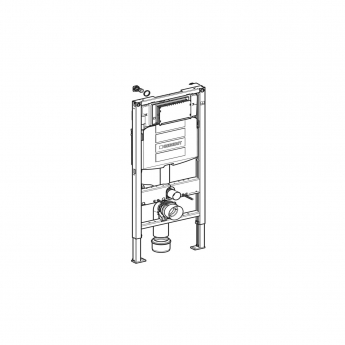

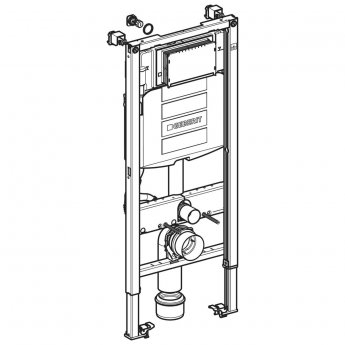

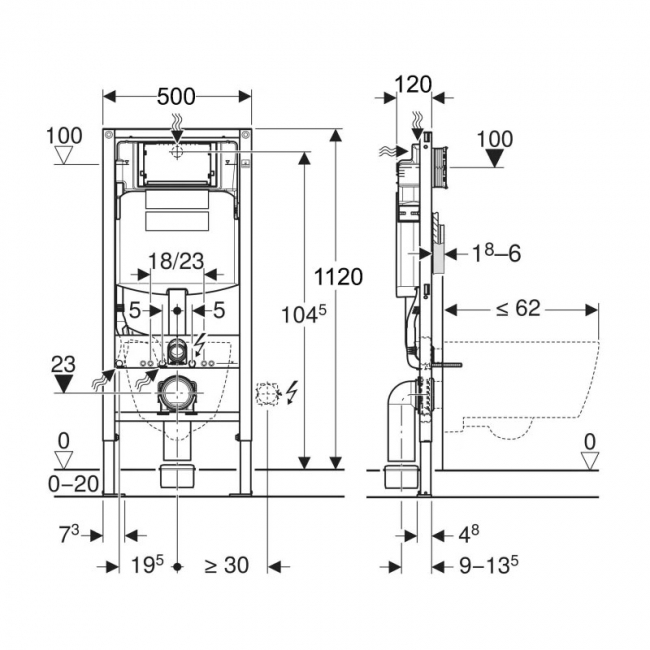

Geberit Duofix UP3201 WC Toilet Frame 1120mm With 120mm Sigma Cistern Pre-Wall Blue

Designed to last, Geberit Sigma frames incorporate tried and tested materials which will serve you for years to come. Installed 60 million times over the past 50 years, Geberit concealed cisterns and flush plates represent the ultimate tried and tested solution.

Dual flush with volume adjustment options to help save water

Leakproof due to one piece blow moulded cistern

Every blow moulded cistern is factory-made leak tested, therefore there are no unnecessary sealings or leakage of the cistern for maximum operational reliability

Product Features

• Concealed cistern with front actuation
• Self-supporting frame, powder-coated
• Galvanized feet

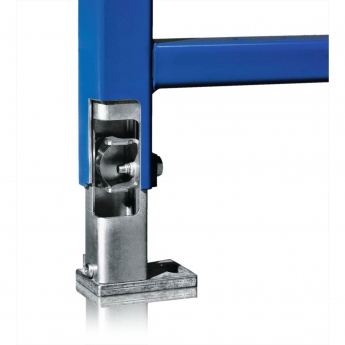

• Feet adjustable 0-20 cm
• Non-slip leg supports
• Rotatable foot plates
• Immediate post flush possible with factory setting
• Water supply connection on the rear or top centre
• Fastening option for electrical connection
• Power & Connect Box mountable
• Compatible with all Geberit flush buttons
• Compatible with over 130 flush plate finishes & styles
• Geberit stock spare parts for 50 years for Sigma concealed cisterns
• Every Geberit cistern is individually tested to guarantee water tightness

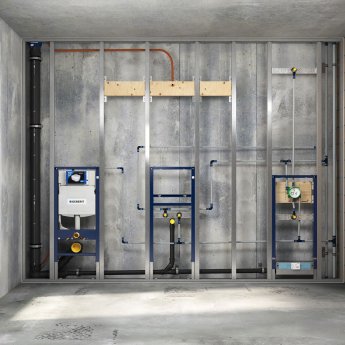

• Frame with 9 mm drilling holes for fastening in wood frame construction
• Acoustic solutions with the Duofix frame mean it's all quiet behind the scenes
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Foot plates, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class Il
• Tool-free installation and maintenance work on concealed cistern
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• No pedestal and no cistern in front of the wall means no exposed pipework for dirt and bacteria to hide

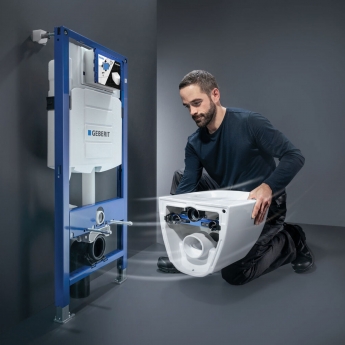

• Very Strong: No wobbling or vibrations - strength-tested to bear a weight of up to 63 stone (400kg) when combined with Geberit ceramic wall hung toilets
• Raw Material to End-of-Life Environmental Product Declaration (EPD) in accordance with EN 15804+A2+AC, ISO 14025 & ISO 21930
• Supplied with a 10 year guarantee ( 50 year on spare parts ) from the manufacturer

Important Information

• Flush plate sold separately, (See the You May Need)
