Product Features

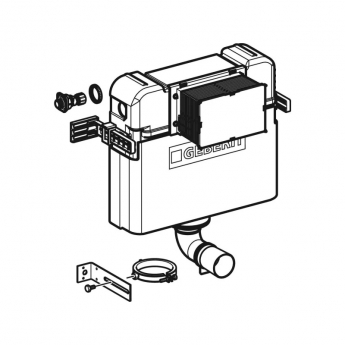

Supplied complete with: Water supply connection of R 1/2 inch, compatible with MeplaFix, integrated angle stop valve and hand wheel, protection housing for service opening, protection plug for flush bend, 2 x pre-mounted fastening brackets, fastening material
Suitable for use with the following models: Kappa20, Kappa50, Dual flush with pneumatic and mechanical buttons, Single flush with pneumatic buttons
Best suited to concealed installation
Compatible with back to wall floor standing WC
Features front actuation
Comes fully insulated against condensation
Inlet at left side for water supply connection
Connection hose to angle stop valve can be screwed without tools
Welded Flush bend
Fast adjustment of the actuator rods for flush plate
Protection housing for service opening, can be cut to length

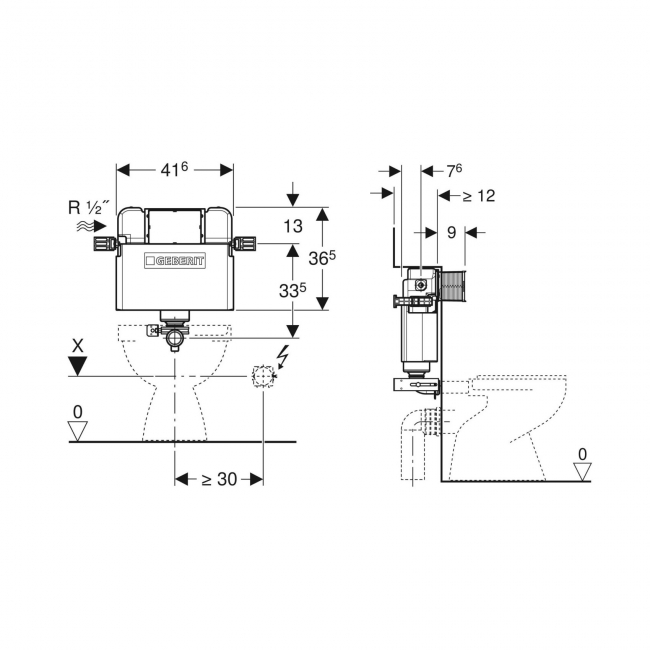

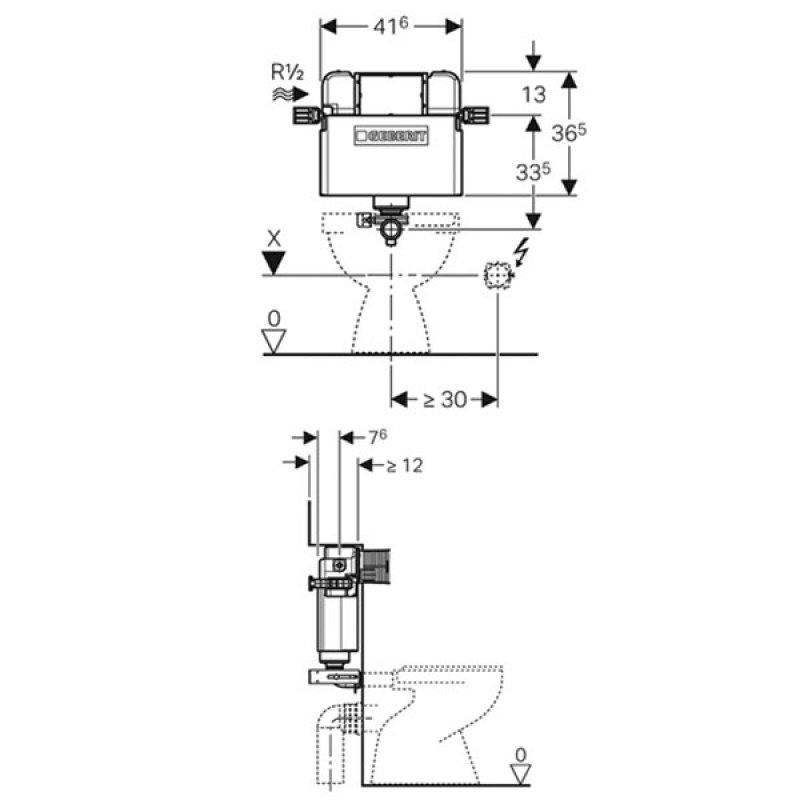

For detailed technical dimensions refer technical image
Supplied with a 1 year guarantee from the manufacturer

Cistern Type	Concealed
Flush Type	Dual Flush
Height	365mm
Width	416mm
Cistern Lever Or Button Placement	Front
Inlet Type	Left
Flow Pressure Range	0.1 - 10 bar
Maximum Operating Temperature of Water	25 degree C
Finish	White
Volume factory setting	5.8 and 3 litre
Material	Plastic
Flush volume small range	3 to 4 litre
EAN Barcode	4025416504627
Manufacturer Part Number	109.205.00.1

Brochure

Type : PDF Size : 22.81 MB

Product Datasheet

Type : PDF Size : 101.06 KB

Duofix Brochure

Type : PDF Size : 1.15 MB
