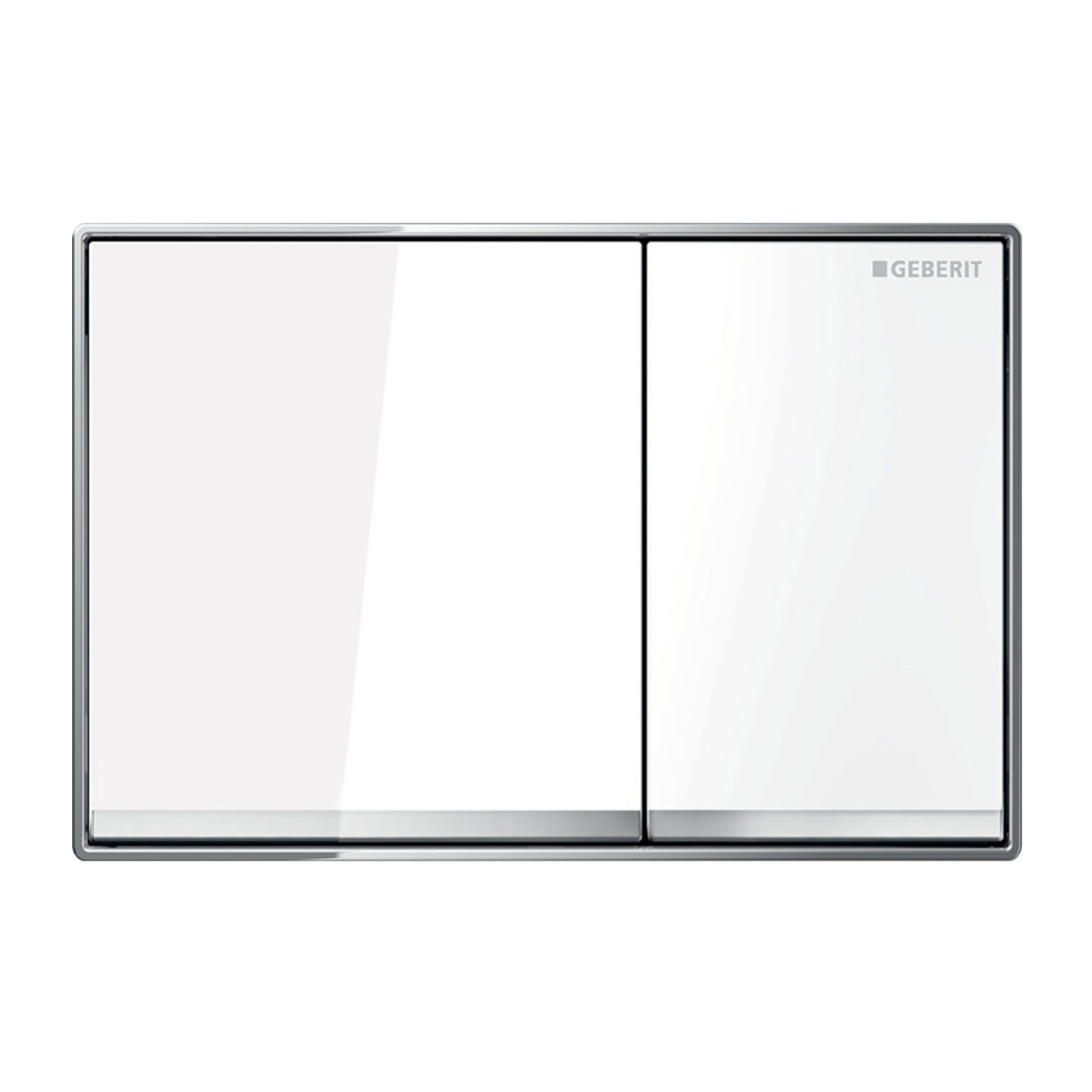

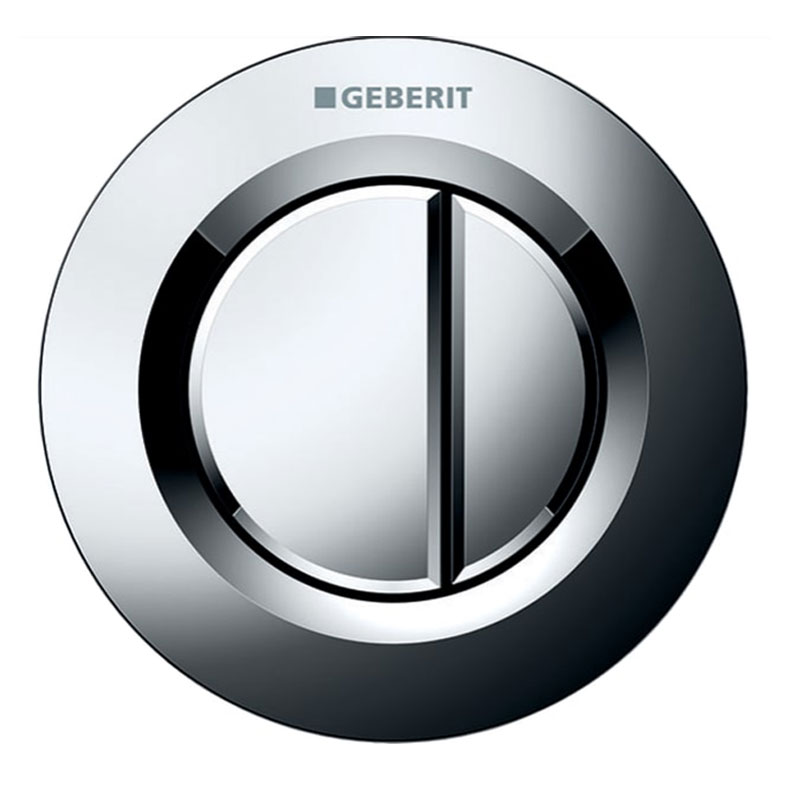

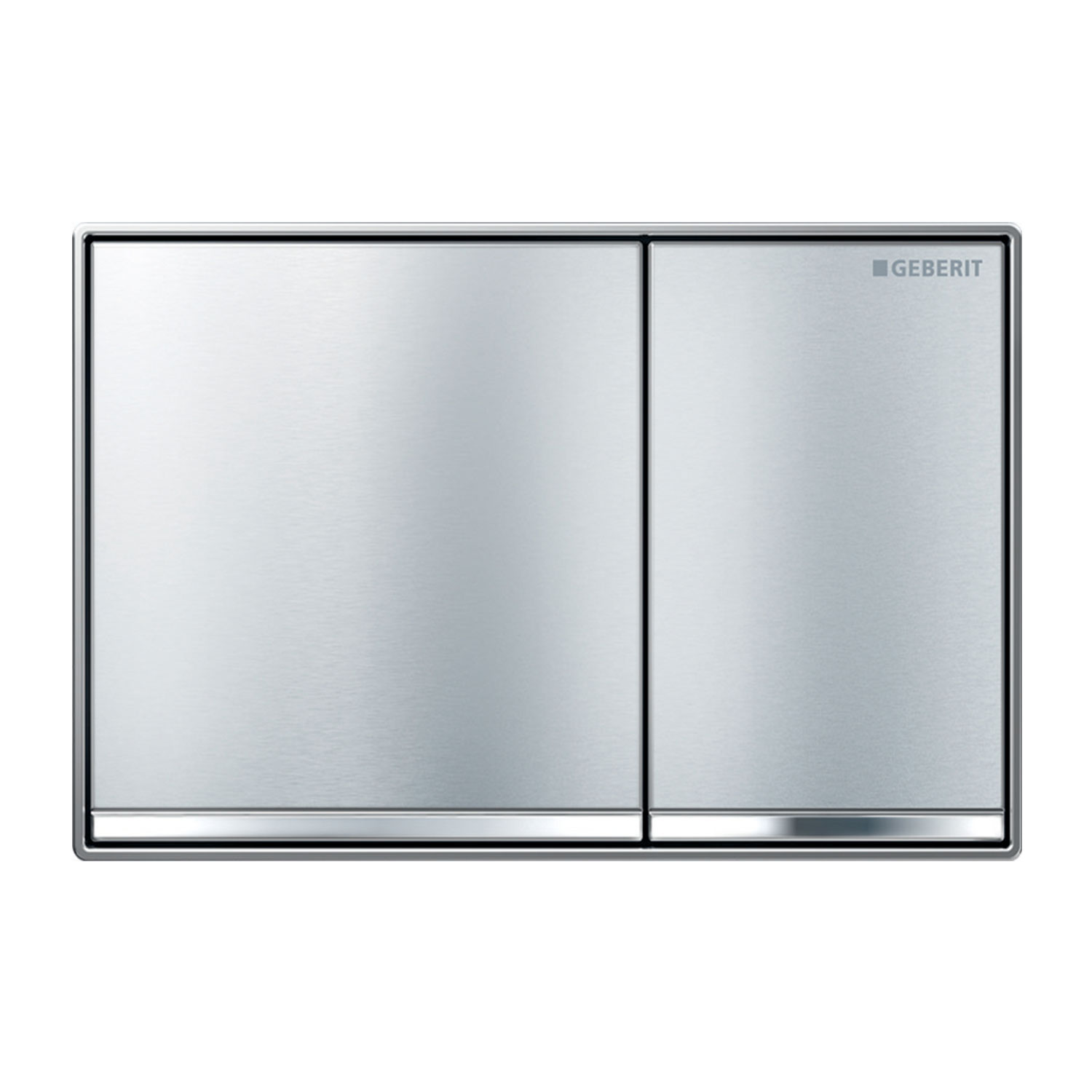

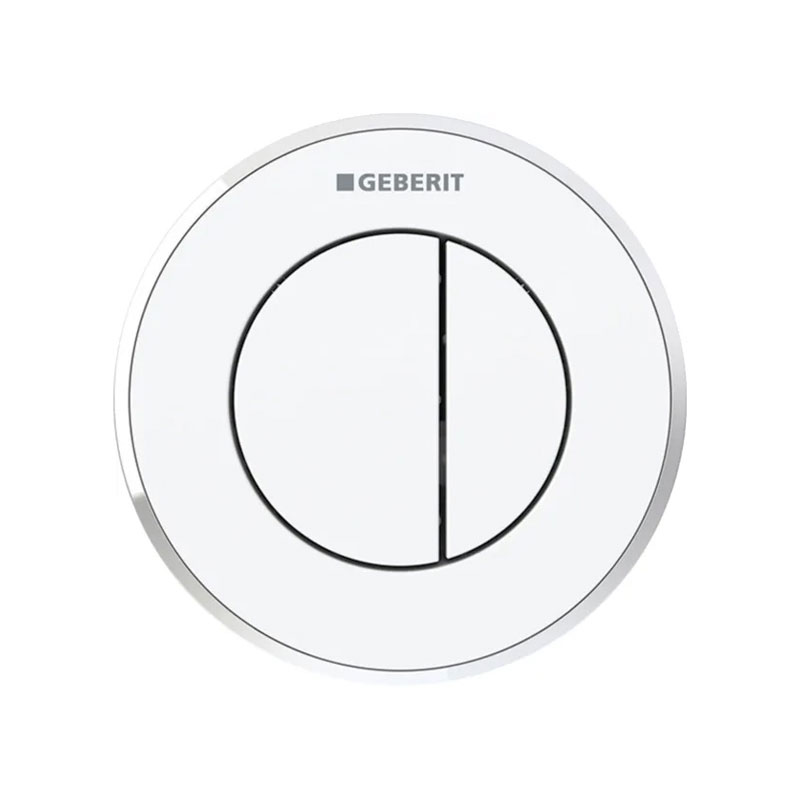

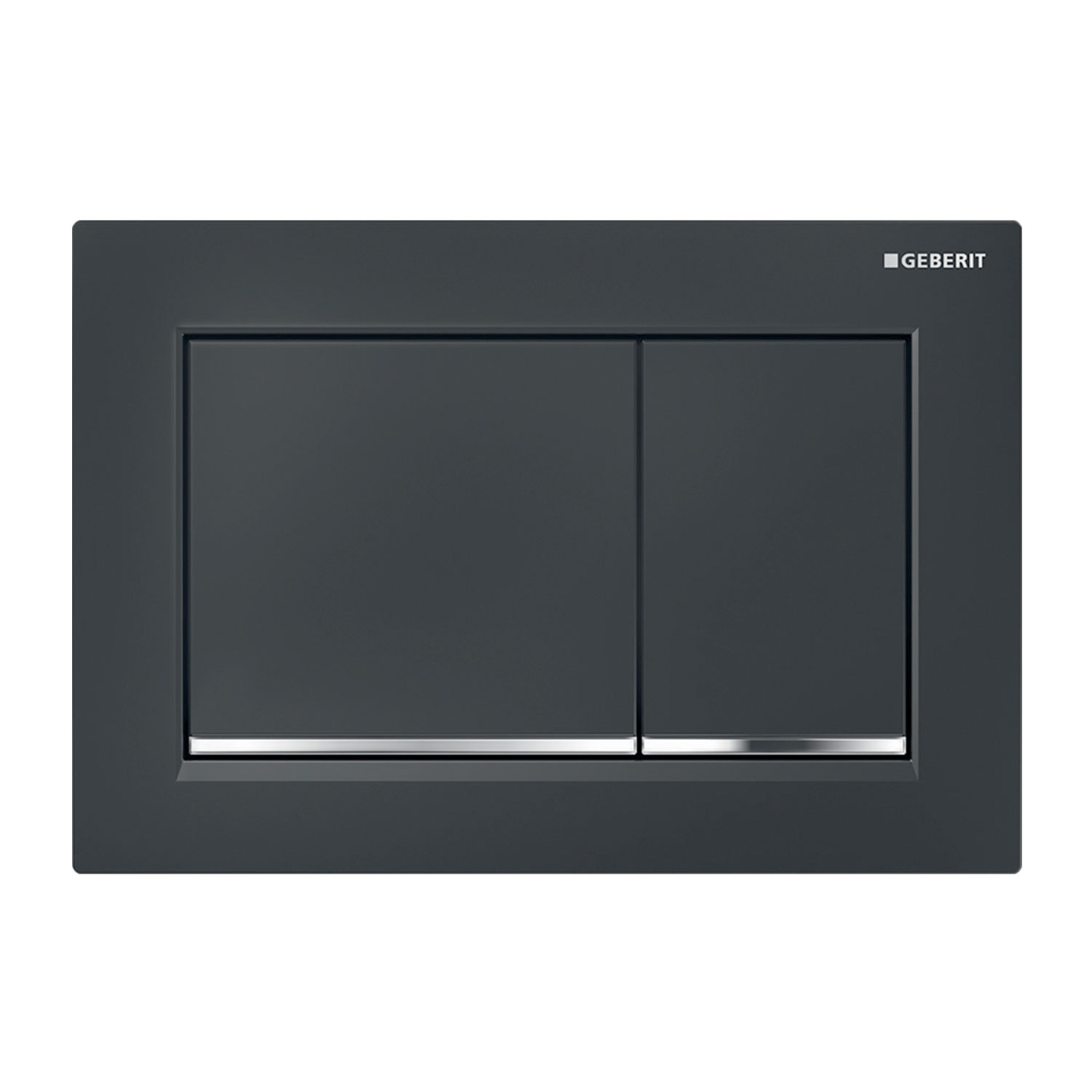

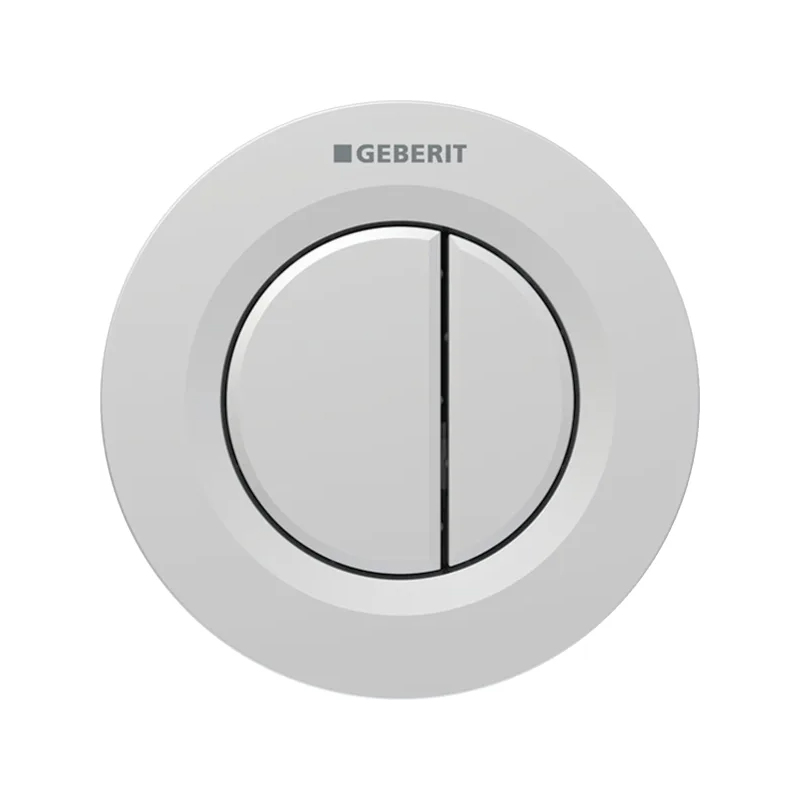

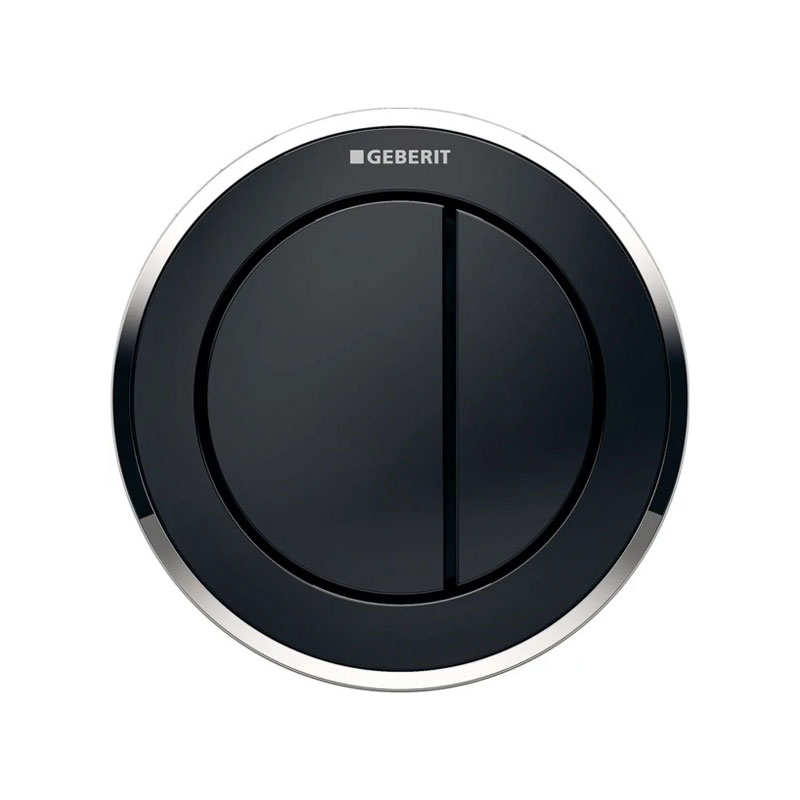

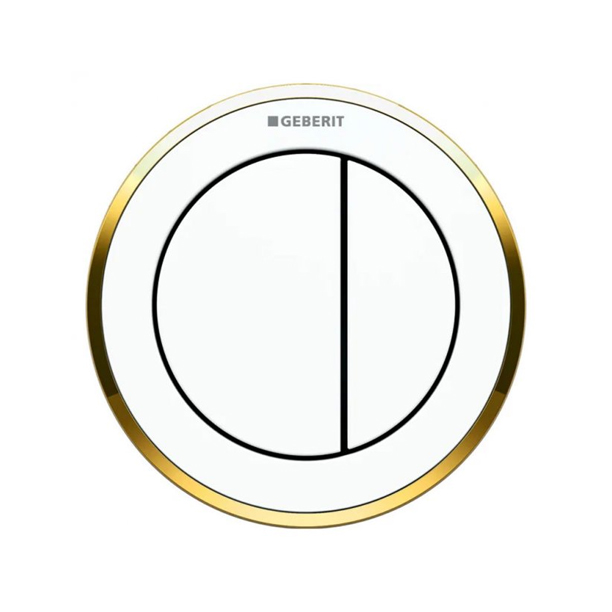

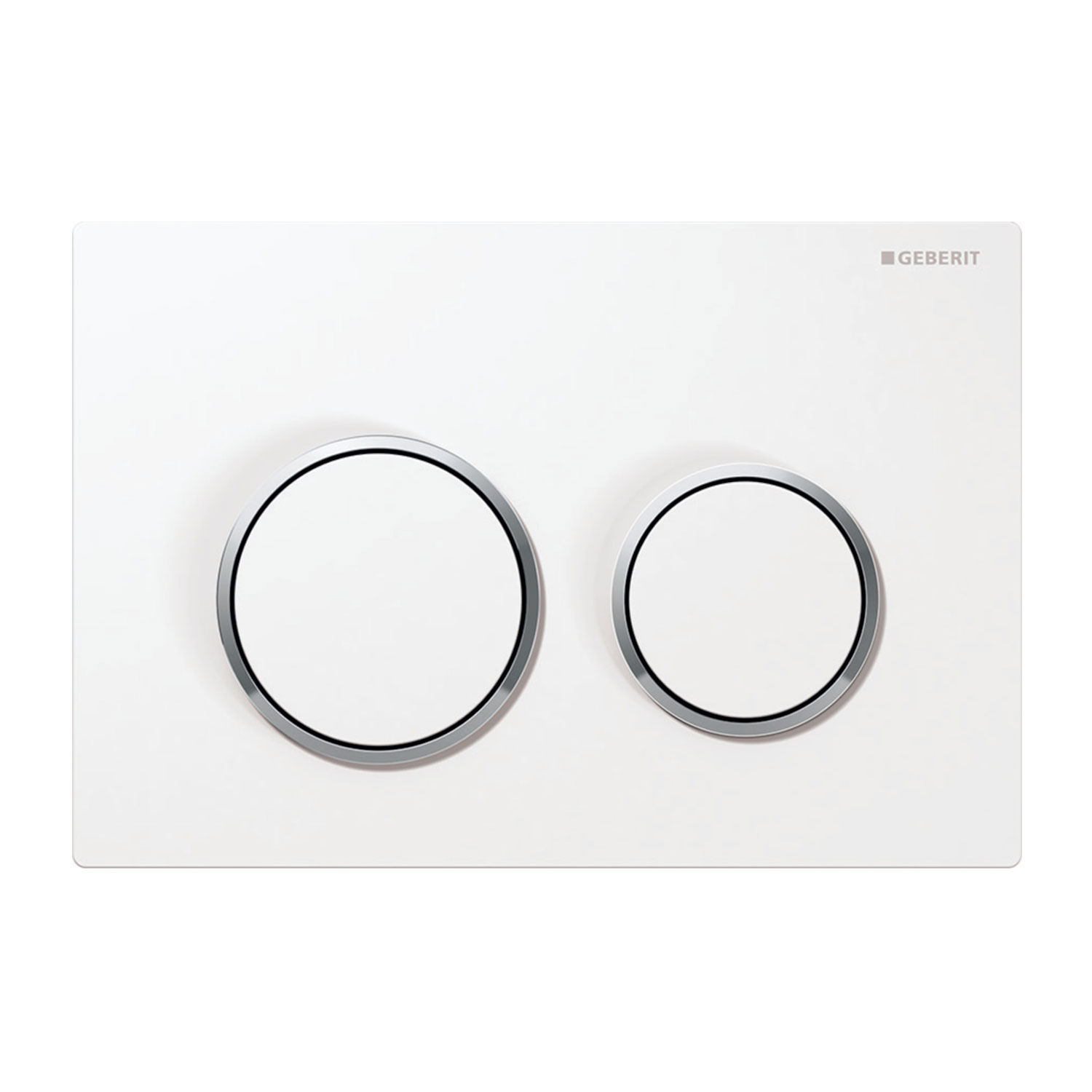

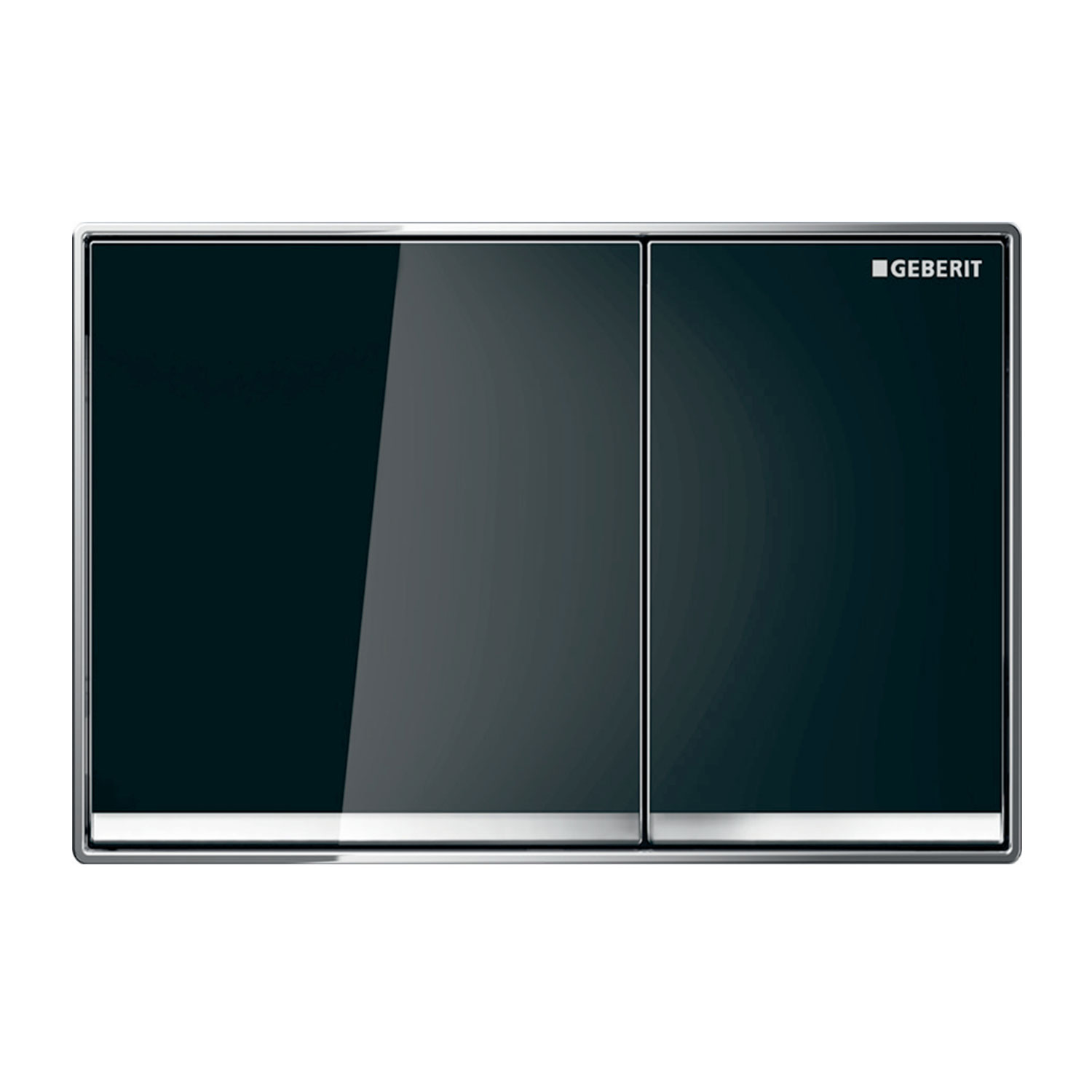

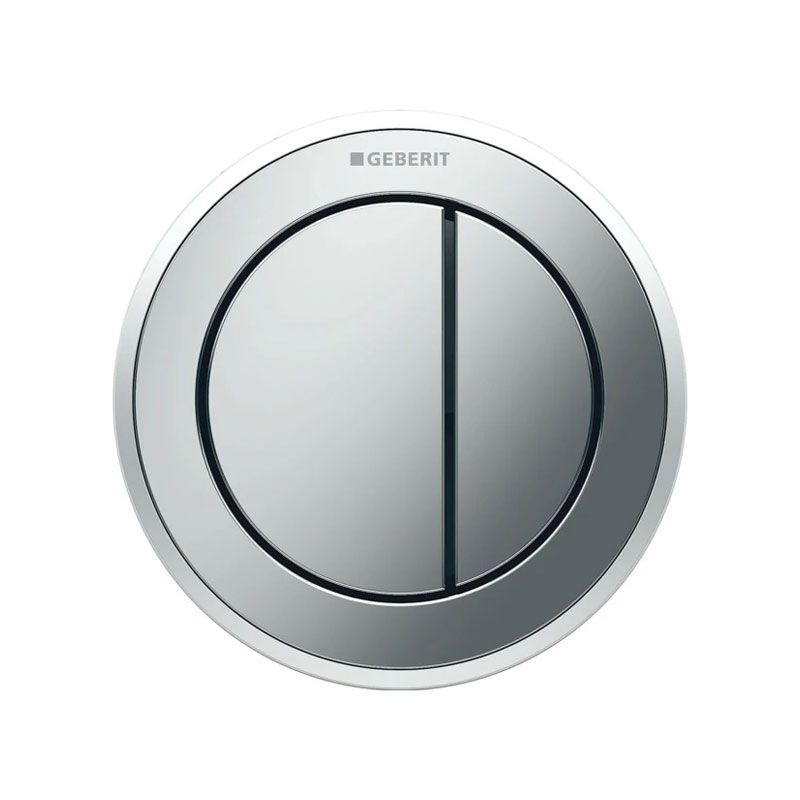

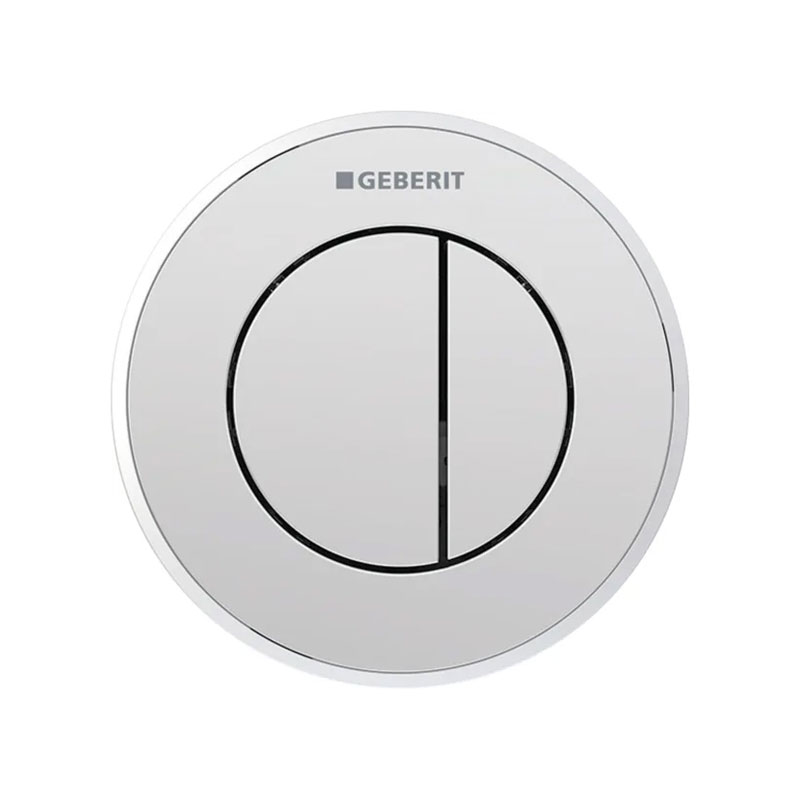

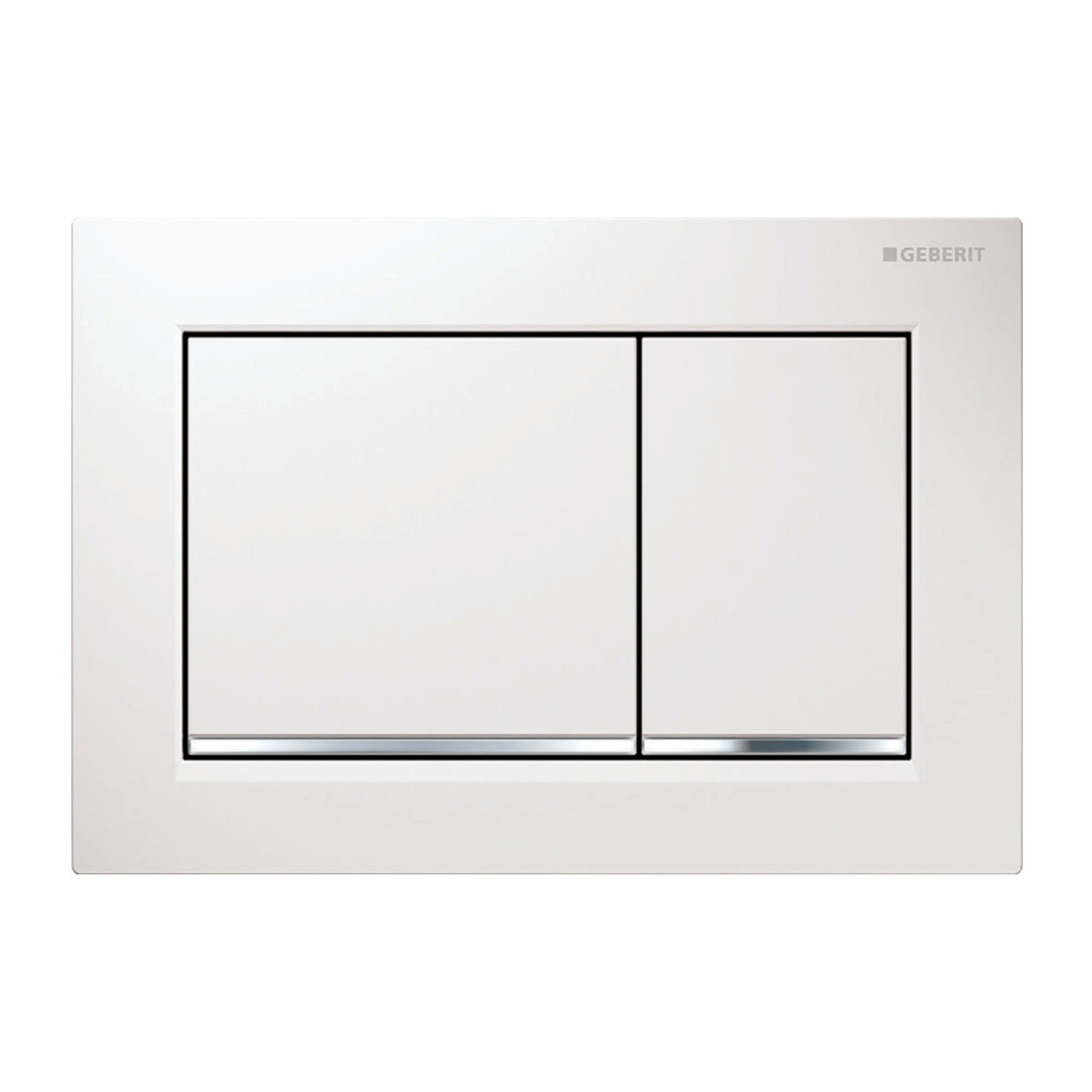

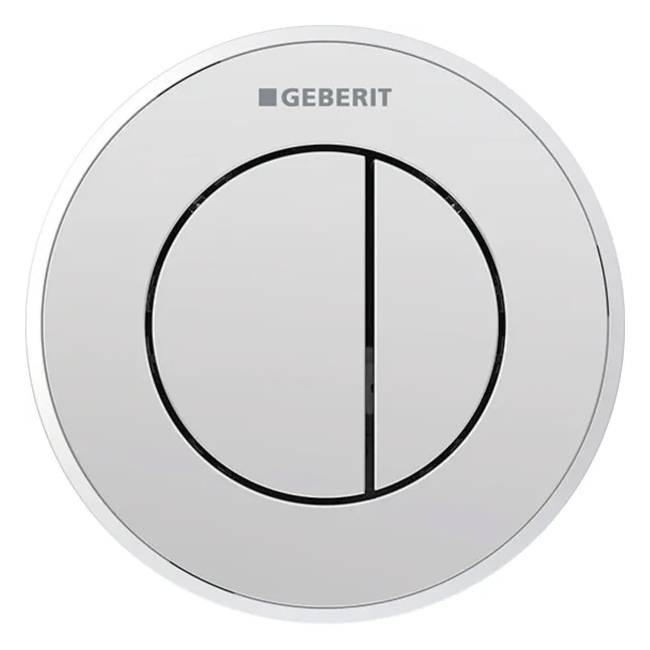

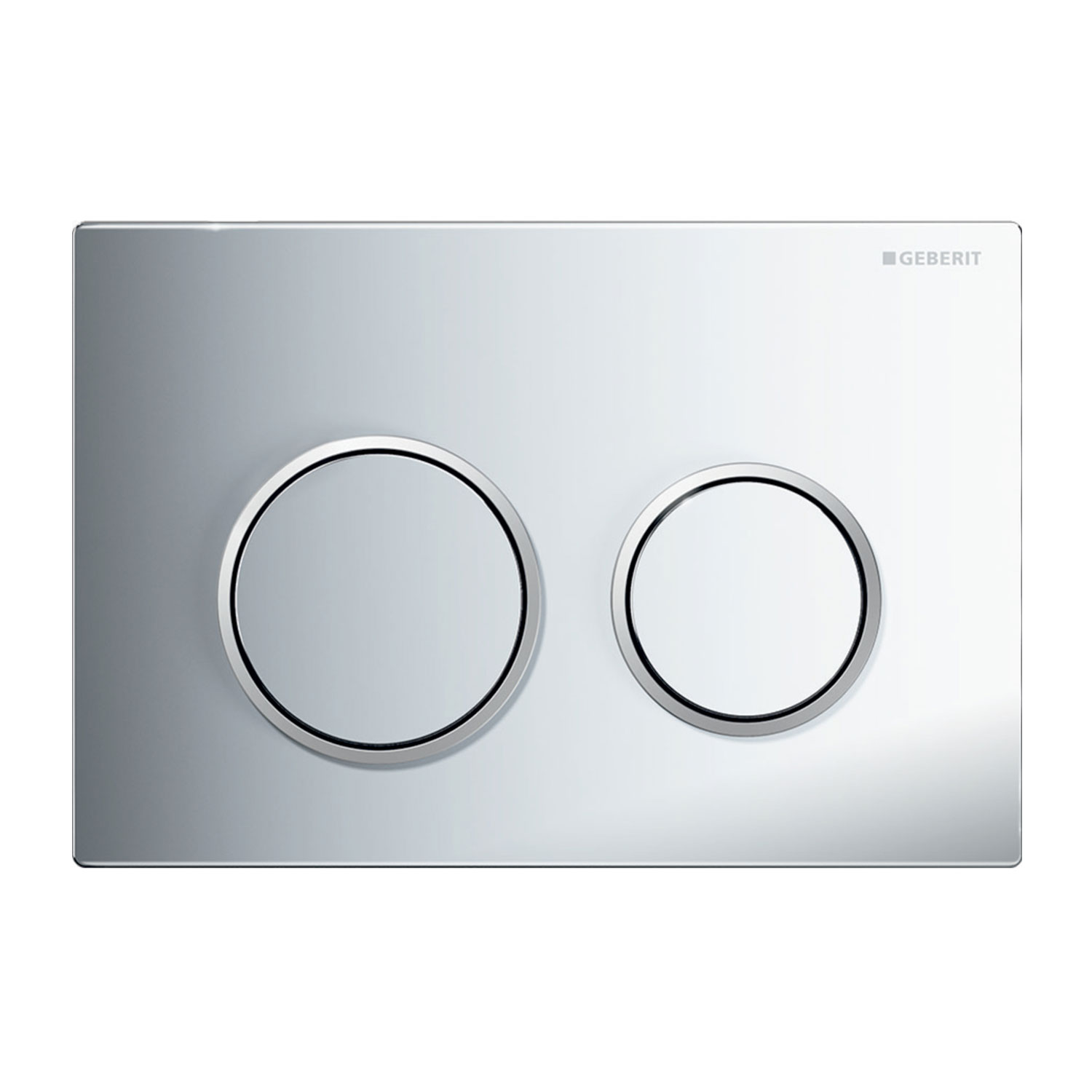

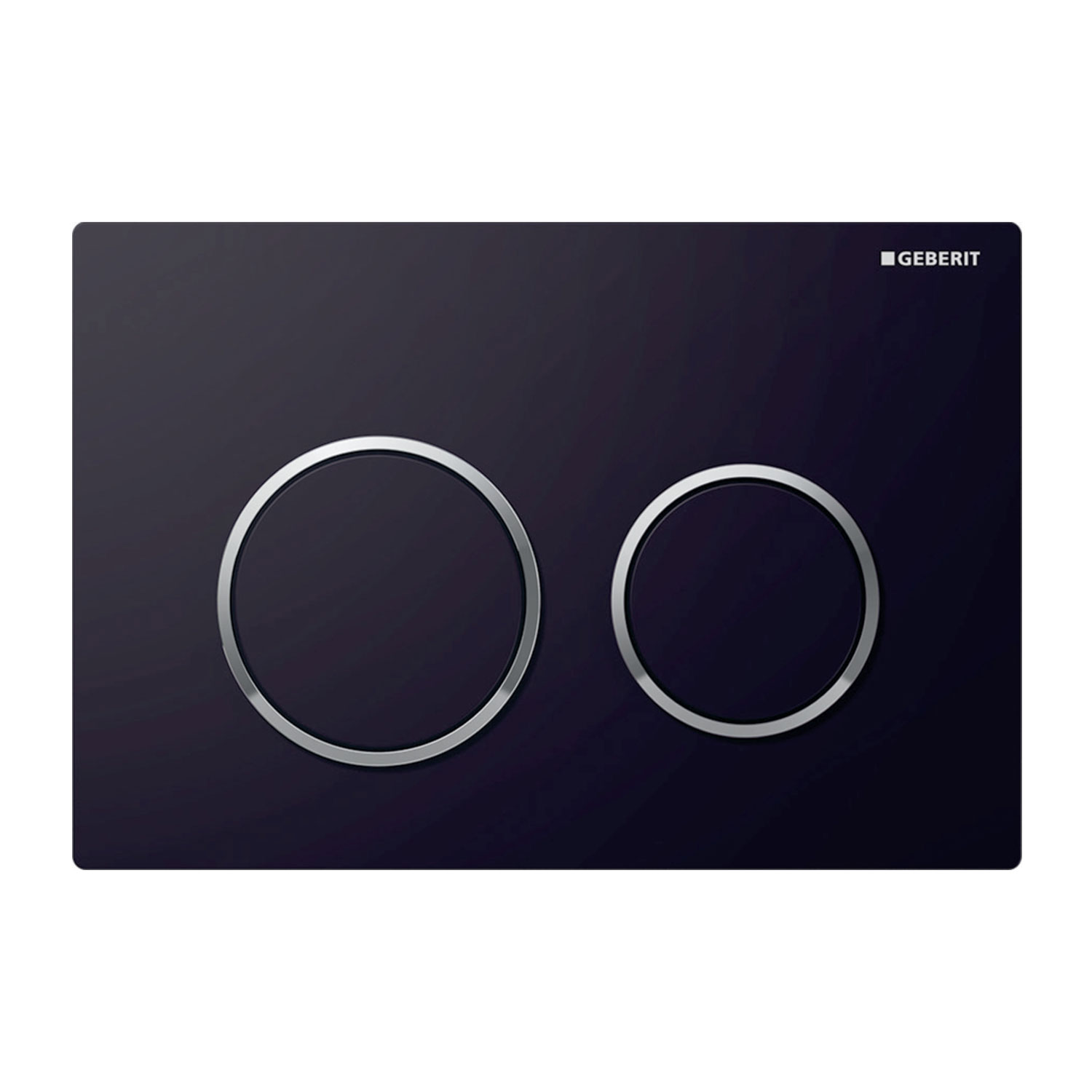

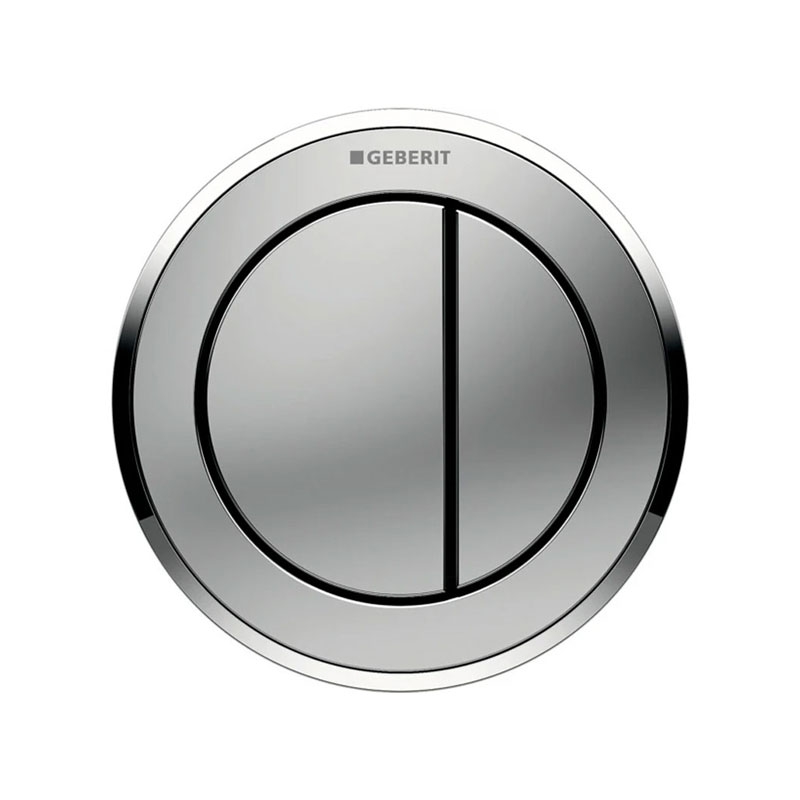

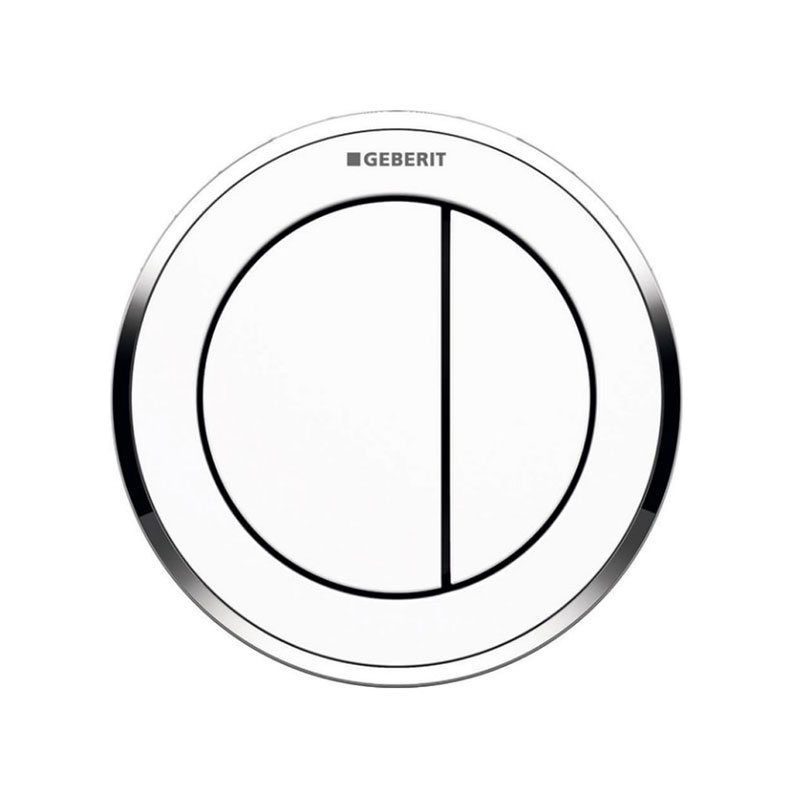

Can be used with : Omega20, Omega30, Omega60, Omega70, Type10

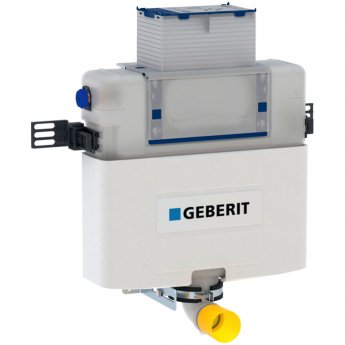

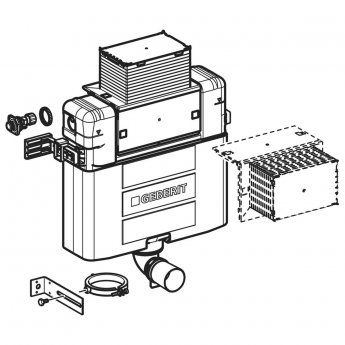

Geberit Omega 109.041.00.1 Concealed Cistern Features:
- For top and front flush actuation
- Comes with top or front access to cistern
- Suitable for Omega flush plates and Geberit remote buttons
- Installation depth of 160 - 205mm
- Suitable for single and dual flush buttons
- For drywall construction
- For installation in part-height prewall installations
- For floor-standing WCs
- Fully insulated against condensation
- Water supply connection left
- Protection housing for service opening, can be cut to length
- Connection hose to angle stop valve can be screw-connected by hand
- Fast adjustment of the actuator rods for flush plate
- Installation height 820mm
- Flush valve features 6l and 4.5l flush settings to enable either a 6l and 3l flush or a 4.5l and 3l flush
- Must be used with pans designed for low volume flush
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- Supplied with a 1 year guarantee from the manufacturer

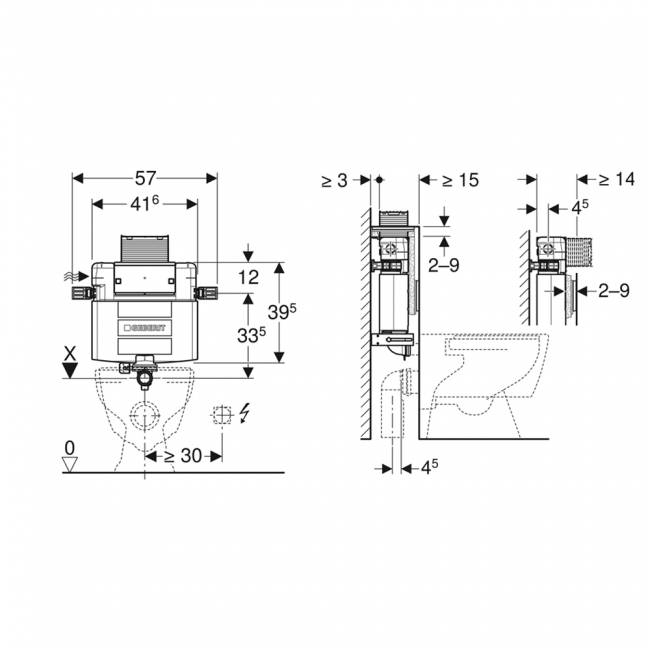

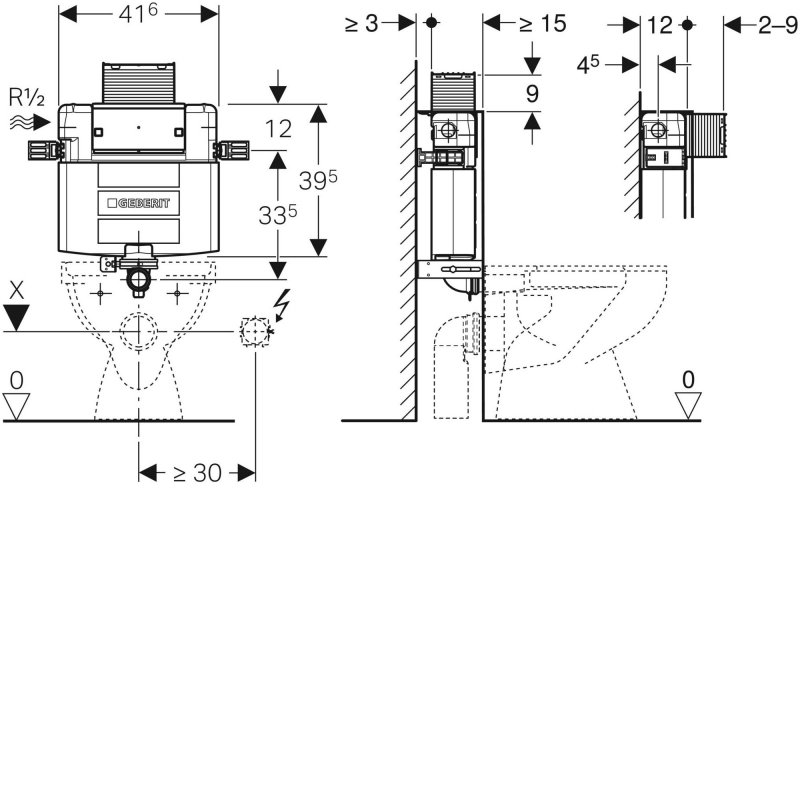

Geberit Omega 109.041.00.1 Concealed Cistern Specifications:
Cistern Type |
Concealed |
Flush Type |
Dual Flush |
Height |
395mm |
Width |
416mm |
Depth |
120mm |
Cistern Lever Or Button Placement |
Front |
Inlet Type |
Left |
Flow Pressure Range |
0.1-10 bar |
Maximum Operating Temperature of Water |
25 degree C |
Finish |
White |
Material |
Plastic |
Volume factory setting |
5.8 and 3 litre |
Flush volume small range |
3 to 4 litre |
Flush Mechanism? |
Included |
Brand |
Geberit |
Collection |
Omega |
Manufacturer Part Number |
109.041.00.1 |
