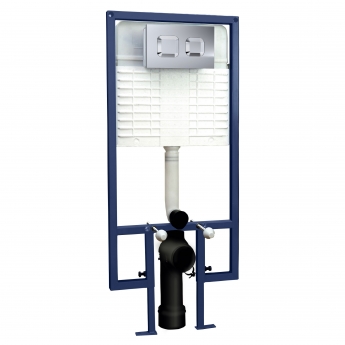

Hudson Reed Wall Hung Toilet Frame with Dual Flush Concealed Cistern - Square Plate
Hudson Reed Wall Hung Toilet Frame with Dual Flush Concealed Cistern - Square Plate

Hudson Reed Wall Hung Toilet Frame with Dual Flush Concealed Cistern - Square Plate

£96.95

Inc. VAT
£198.00 SAVE £101.05 In Stock

Hudson Reed XTY009S Wall Hung Frame Features:


  • Toilet or other accessories sold separately (See the You May Need)
  • Contemporary concealed cistern with wall hung frame
  • Stainless steel square flush buttons with a luxury chrome finish
  • Water saving dual flush mechanism
  • During installation extra care must be taken to avoid damaging the fittings
  • Dual flush, water-saving cistern comes complete with wall plate
  • Comes with an excellent 5 year guarantee from manufacturer

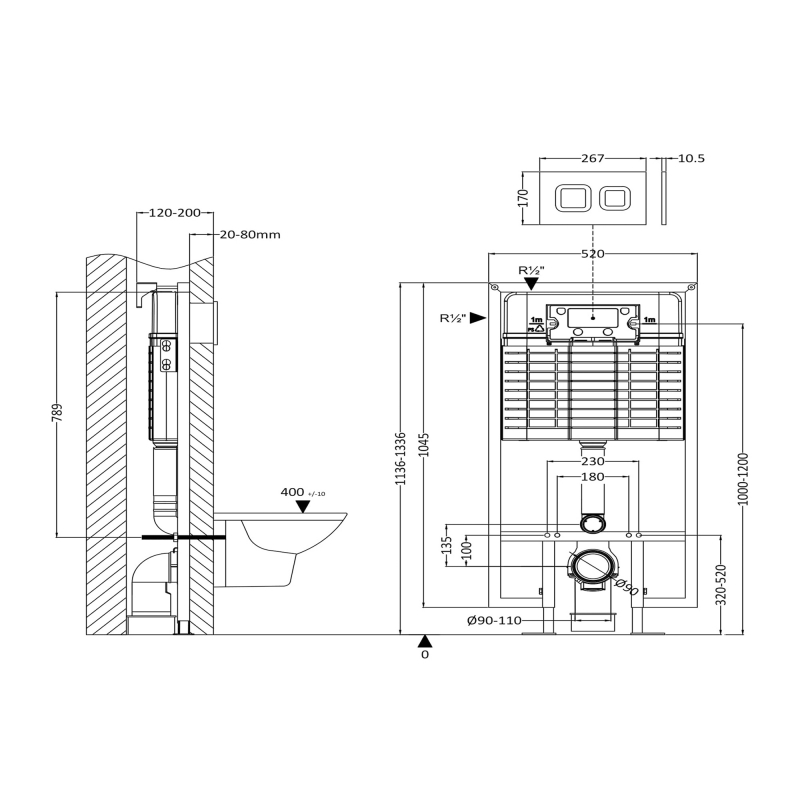

Hudson Reed XTY009S Wall Hung Frame Specifications:


Wall Hung Frame Type Toilet
Frame Height 1136 - 1336mm
Frame Width 520mm
Frame Depth 120 - 200mm
Cistern Full Flush 6 Litres
Cistern Half Flush 3 Litres
Flush Type Push Button
Mounting Wall
Wall Hung Frame Includes Flush Plate
Material Stainless Steel
Colour Bright and Matt Chrome
Brand Hudson Reed
Style Modern
Market Domestic
EAN Barcode 5056211863601
Manufacturer Part Number(s) XTY009S
