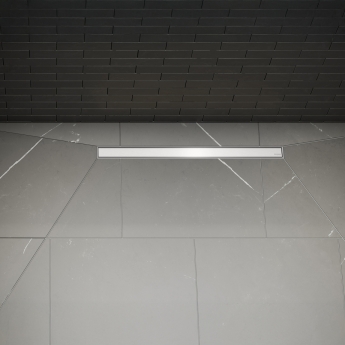

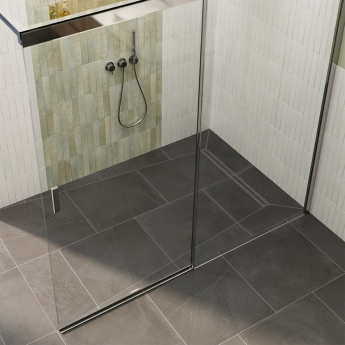

Impey Aqua-Dec Linear 4 Wet Room Floor Former Tray (for Tiled Floors)

Impey Aqua-Dec Linear 4 Wet Room Floor Former

The most versatile model in the collection, the Aqua-Dec Linear 4 is a level access floor former designed for installation under tiled floor wet rooms. The Aqua-Dec Linear 4 consists of four gradients (falls) leading to a stylish linear drain. Due to the layout of the gradients, this model can be installed in almost any shower configuration.

The Aqua-Dec Linear 4 comes with a horizontal gravity waste capable of up to 40 litres per minute flow rate. A brushed stainless steel Elements drain cover also comes bundled with the tray. Alternative drain covers - including tile insert options - are available separately as extras.

Product Features

• Wet room floor former tray designed to create a full level-access shower
• includes horizontal gravity waste and brushed stainless steel Elements drain cover
• Stylish linear drain helps create a design-led, minimalist aesthetic

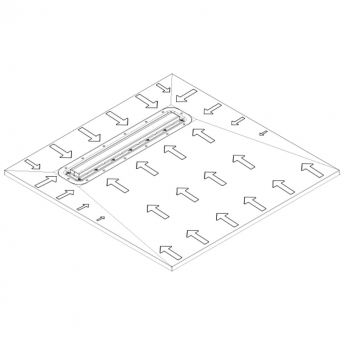

• 4 gradients (falls) built in to the tray, leading to the linear drain
• Drain positioned 194mm from the wall
• Waste/drain capable of flow rates up to 40 litres per minute
• Suitable for installation on wooden floors and concrete floors
• Designed for use on tiled floors - not suitable for use with vinyl floors
• 22mm thick - designed to match height of standard 18mm UK timber + 4mm ply
• Versatile installation - ideal for walk-ins, walk-throughs, corners, alcove spaces
• Suitable for trimming to size - contact the manufacturer for detailed information
• Manufactured in the UK
• Part of the UK's most popular and most specified range of wet room formers
• Supplied with a lifetime guarantee from the manufacturer

Important Information

• Includes horizontal gravity waste and brushed stainless steel drain cover as standard
• Not self-supporting - under-boarding is required when using the Aqua-Dec Linear
• Alternative drain covers are available as optional extras
• Tile insert covers - to create an even more minimal look - are available as optional extras
• Vertical waste outlet options are available on request - contact us for more information
