Nuie Traditional Concealed Shower Valve with Slider Rail Kit and Fixed Shower Head - Chrome

Quick Code: 2792706
Ref: HAPKCS26
4.8/5.0(1 Reviews)
Nuie | Brand Logo
£402.75 Inc. VAT

5% price drop on Nuie & Hudson Reed - extended until 30/06/26

Was: £423.95

PayPal Credit
Spread the cost with 12 monthly payments of £33.56 at 0% APR using PayPal.
Find out more
PayPal Credit

Stock Due

Stock expected to arrive on 24/06/2026.

Free Delivery Available

Delivery postcode restrictions apply

Check

Product Features

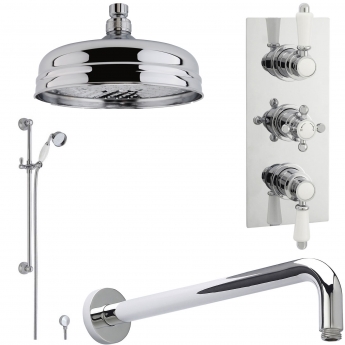

  • Comes complete with Shower valve, Round shower head, Shower handset, Shower hose and Shower Arm
  • Thermostatic control to +/- 2 to 3C even if the water pressure fluctuates
  • Full thermal protection to prevent scalding in the event of hot or cold water shut off
  • In the event of hot or cold water failure the valve will shut down as per the relevant standard
  • The patented cartridge is highly resistant to calcium build up - even in hard water areas
  • Shower valve fitted vertically or horizontally
  • Our valves are suitable for use with all systems: gravity fed pumped unvented high pressure or fully modulated combi-boilers
  • Excellent flow rates - even at low pressure
  • Operates two shower accessories separately or simultaneously
  • Top control operates one shower accessory, centre adjusts temperature, bottom control operates the other shower accessory
  • The cartridge is fully reversible meaning if hot and cold supplies are the wrong way round it doesn't need re-plumbing
  • Simply remove the cartridge turn 180 and replace
  • Smooth operation with quality components
  • Round handset with white ceramic detail
  • Supplied with chrome plated handset
  • 8 inch Apron fixed head design
  • Outlet elbow included
  • A stunning classic finishing touch to your shower
  • Designed to be installed with a wall or ceiling-mounted shower arm
  • Guarantee : 5 Year (12 months on serviceable moving parts from the date of purchase), please see manufacturer guarantee policy for more information

Shower TypeThermostatic
Shower Valve PositionConcealed
Shower Valve Outlets2
Shower IncludesShower Kit, Shower Valve, Fixed Head
Shower Valve Controls3
Shower Kit Height750mm
Shower Arm Length335mm
Shower Head Width200mm
Shower Head Depth200mm
Minimum Pressure0.5 Bar
Maximum Pressure3.0 Bar
Inlet Connection Size15mm
Weight5.63 Kg
MaterialBrass/ABS
ColourChrome
BrandNuie
StyleTraditional
MarketDomestic
Flow Rate @ 0.1 Bar5.5 l/min
Flow Rate @ 0.5 Bar14 l/min
Flow Rate @ 1.0 Bar20 l/min
Flow Rate @ 2.0 Bar29 l/min
Flow Rate @ 3.0 Bar44 l/min
Manufacturer CodeITY315+A3211+HEAD21+ARM01

Shower Head Fitting Instructions
Type : PDF Size : 191.69 KB
Shower Valve Datasheet
Type : PDF Size : 177.92 KB
Shower Head Datasheet
Type : PDF Size : 1.05 MB
Shower Kit Datasheet
Type : PDF Size : 1.05 MB
Shower Arm Datasheet
Type : PDF Size : 536.19 KB
Guarantee Policy
Type : PDF Size : 319.11 KB
Shower Valve Fitting Instructions
Type : PDF Size : 3.47 MB
Shower Arm Fitting Instructions
Type : PDF Size : 191.42 KB
Shower Kit Fitting Instructions
Type : PDF Size : 191.99 KB
Brochure-26
Type : PDF Size : 43.73 MB

Write a review

Excellent would recomend

Reviewed by Clive Lockyer

Posted on 19/04/2022
