Delphi Axiom Crosshead Chrome Dual Concealed Shower Set with Fixed Head and Handset

Quick Code: 2858034
Ref: DEXC22FHCP
Delphi | Brand Logo
£286.95 Inc. VAT

Special offer - available at a new lower price for a limited time

Was: £

PayPal Credit
Spread the cost with 12 monthly payments of £23.91 at 0% APR using PayPal.
Find out more

Configuration:

Dual Valve | Fixed Head + Handset
▾
Dual Valve | Fixed Head
Dual Valve | Handset + Bracket
Dual Valve | Large Drencher Head
Dual Valve | Slide Rail Kit
Dual Valve | Fixed Head + Handset
Dual Valve | Large Drencher Head + Handset
Dual Valve | Large Drencher Head + Slide Rail Kit
Triple Valve | Fixed Head + Handset
Triple Valve | Large Drencher Head + Handset
Triple Valve | Large Drencher Head + Slide Rail Ki

Colour/Finish:

In Stock

Usually delivered within 3 working days

Free Delivery Available

Delivery postcode restrictions apply

Check

Delphi Axiom Crosshead Chrome Dual Concealed Shower Set with Fixed Head and Handset

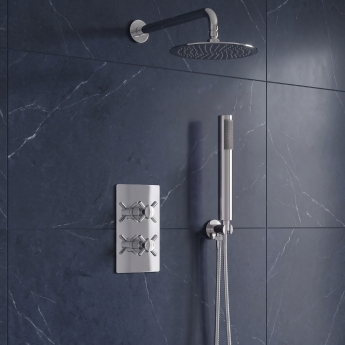

Two ways to shower from one chrome valve: this Axiom Crosshead set pairs a 200mm rainfall head with a pencil handset, which covers washing hair, rinsing the enclosure and everything in between. The valve plate is a rounded corner rectangle with four spoke crosshead handles, and the chrome stays consistent across every piece.

Two controls are all it takes, one for temperature and one that opens the flow and diverts it between the two outlets. Valve, head, 335mm arm and handset set are supplied together for one price.

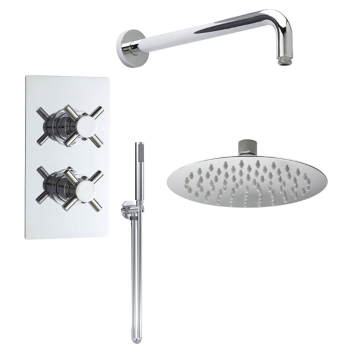

Bundle Contents

  • 1 x Delphi Axiom Crosshead Chrome 2-Outlet Dual Concealed Shower Valve
  • 1 x Delphi Round Chrome Fixed Shower Head 200mm x 200mm
  • 1 x Delphi Round Chrome Shower Arm 335mm
  • 1 x Delphi Round Pencil Chrome Shower Handset (inc Bracket, Hose and Wall Outlet Elbow)

Shower Valve Features

  • Two-handle shower valve, including the concealing plate and valve body in one package
  • Two outlets with an integrated diverter, feeding the fixed head or the handset

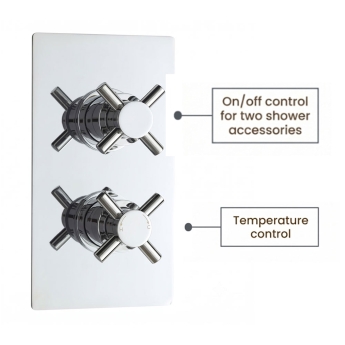

  • Two controls: one sets the temperature, the other turns the shower on and switches between outlets
  • Thermostatic cartridge holds your set temperature to within 2 to 3 degrees C
  • TMV2 approved, so the flow shuts off if the cold supply fails
  • WRAS approved for connection to the mains water supply
  • Quarter turn ceramic disc cartridge, highly resistant to limescale

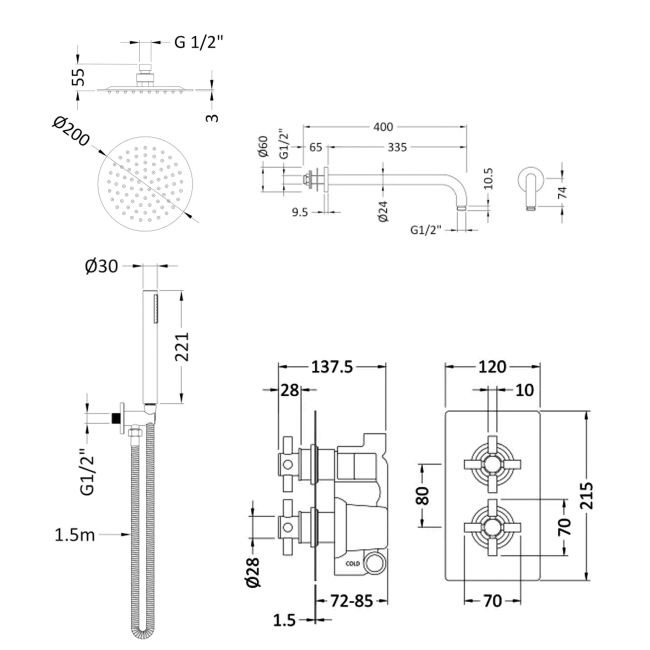

  • 215mm x 120mm plate, fitted portrait or landscape, needing a recess 72mm to 85mm deep
  • 15mm inlets, working from a minimum of 0.5 bar
  • Chrome finish, matched across every piece in the bundle

Fixed Shower Head and Arm Features

  • 200mm diameter round spray face, flat and thin edged for a pared back look overhead
  • Stainless steel, which will not rust or tarnish in a shower enclosure
  • Rub clean silicone nozzles laid out in concentric rows
  • Single function rainfall spray, just 55mm deep from face to connector
  • Matching round arm projecting 335mm from the finished wall on a 60mm round flange
  • 1/2 inch BSP swivel connector, so the spray angle can be adjusted

Handset and Bracket Features

  • Single function round pencil handset with a slim cylindrical body
  • Round wall bracket fixed at one height, with the water outlet built into it
  • Handset lifts out for rinsing and parks back in place, with no height adjustment
  • 1500mm flexible shower hose with 1/2 inch BSP connections
  • Wall outlet elbow included, connecting the handset straight to the concealed valve
  • 5 year guarantee across the bundle against faulty workmanship and materials, with 12 months on serviceable and moving parts

Important Information

  • This is a two-outlet shower valve designed for two accessories only (both are included).

Shower TypeMixer
Temperature ControlThermostatic
Valve PositionConcealed
Valve Controls2
Valve Outlets2
Backplate ShapeRectangular
Control TypeCrosshead
Fixed Head ShapeRound
Fixed Head Size200mm Diameter
Fixed Head MountingWall Arm
Wall Arm Length335mm from the wall
Handset ShapeRound (Pencil)
Handset MountingWall Parking Bracket
Handset ModesSingle Function
Shower Hose Length1500mm
Minimum Pressure0.5 Bar
Minimum Pressure by PartValve (0.5 Bar), Fixed Head (0.5 Bar), Handset (0.1 Bar)
Manufacturer Part NumberXC-22-FH-CP
MaterialBrass, ABS, Stainless Steel
Colour/FinishChrome
BrandDelphi
CollectionAxiom Crosshead
StyleModern
Weight6.52 kg
Flow Rate @ 0.5 Bar13.00 Litres/Min
Flow Rate @ 1.0 Bar17.00 Litres/Min
Flow Rate @ 2.0 Bar24.00 Litres/Min
Flow Rate @ 3.0 Bar27.00 Litres/Min

Shower Handset Fitting Instructions
Type : PDF Size : 193.88 KB
Shower Arm Fitting Instructions
Type : PDF Size : 191.42 KB
Shower Valve Fitting Instructions
Type : PDF Size : 6.71 MB
