Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White
Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White
Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White
Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White

Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White
Reference: GB109309005

  • Free Delivery*Approx 3 Working Days

  • 1 Years GuaranteeOn this product

  • Write a Review

Other Option Available

The Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White comes from the exciting Sigma range of Sanitaryware. With smart features this white finished, concealed cistern is a splendid addition in any bathrooms. Comes with 1 year guarantee for complete peace of mind.

Can be use with :

  • Sigma80 touchless
  • Sigma60
  • Sigma50
  • Sigma20
  • Sigma10 touchless
  • Sigma01 or Bolero flush plates
  • Single flush with Sigma10
  • Tango flush plates

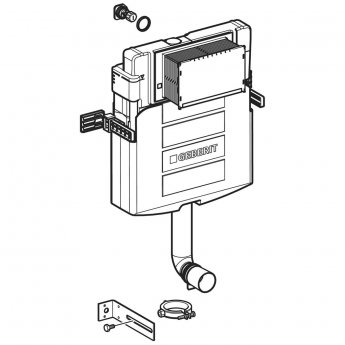

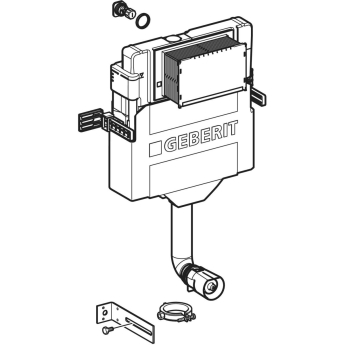

Supplied Complete With :

  • Water supply connection R 1/2" with integrated angle stop valve
  • Flush pipe 45 mm, Fastening for flush bend
  • Protection plug for flush pipe
  • slotted flat irons
  • 2 fastening brackets
  • pre-mounted
  • Fastening material

Geberit Sigma 109.309.00.5 Concealed Cistern Features:


  • Cistern with front actuation only
  • Suitable for concealed installation
  • Fully insulated against condensation
  • Protection cover for service opening can be mounted without tools and cut to length
  • Dual flush with pneumatic and mechanical buttons and single flush with touchless flush or pneumatic buttons
  • Can be reversed to give access from behind in a duct situation when flushed with HyTouch pneumatic buttons or touchless flush
  • Flush valve features 6l and 4.5l flush settings to enable either a 6l and 3l flush or a 4.5l and 3l flush. For flush volumes of 4l and 2l a low flush beaker is required (241.894.00.1)
  • Can be worked with used water (rainwater) provided it is passed through a filter system first
  • Adjustable flushing volume
  • Water supply connection at centre back or at the top
  • Flush volume small range: 3-4 l and Flush volume factory setting: 5.8 and 3 1
  • Flush bend has maximum 8cm adjustment. Flush can be cut down by maximum of 8cm
  • Fastening bracket adjustable in depth
  • Suitable for back to wall floor standing WCs
  • Comes with an excellent 1 year guarantee from the manufacturer

Geberit Sigma 109.309.00.5 Concealed Cistern Specifications:


Cistern TypeConcealed
Flush TypeDual Flush
Height635mm
Width570mm
Depth160mm
Cistern Lever Or Button PlacementFront
Inlet TypeCentre, Back, Top
Flow Pressure Range0.1 - 10 bar
Maximum Operating Temperature of Water25 degree C
MaterialPlastic
FinishWhite
Manufacturer Part Number109.309.00.5
Suitable Flush Plate Sigma01
Suitable Flush Plate Sigma10
Suitable Flush Plate Sigma20
Suitable Flush Plate Sigma40
Suitable Flush Plate Sigma50

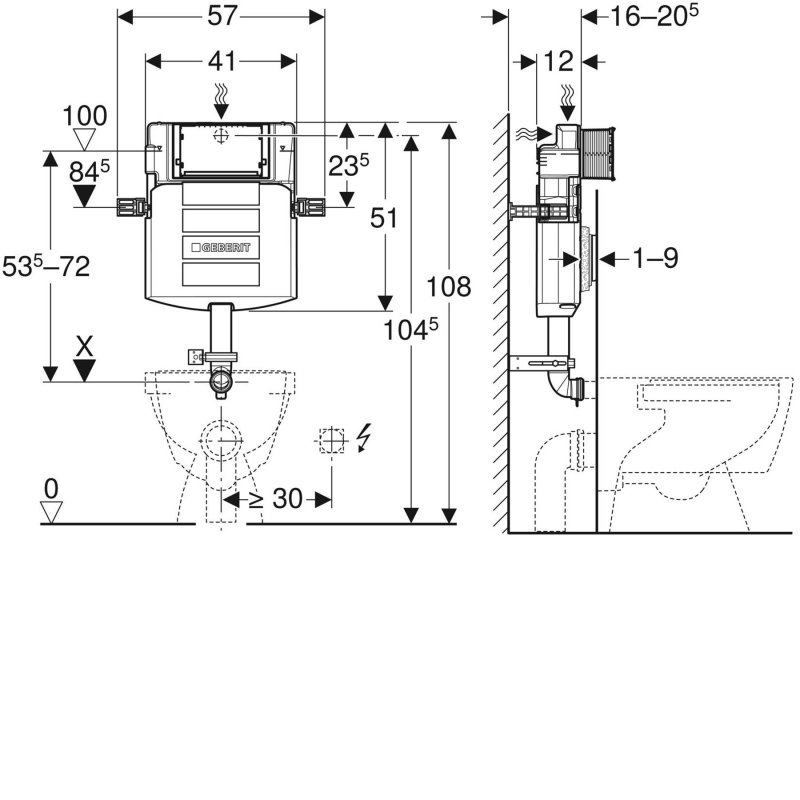

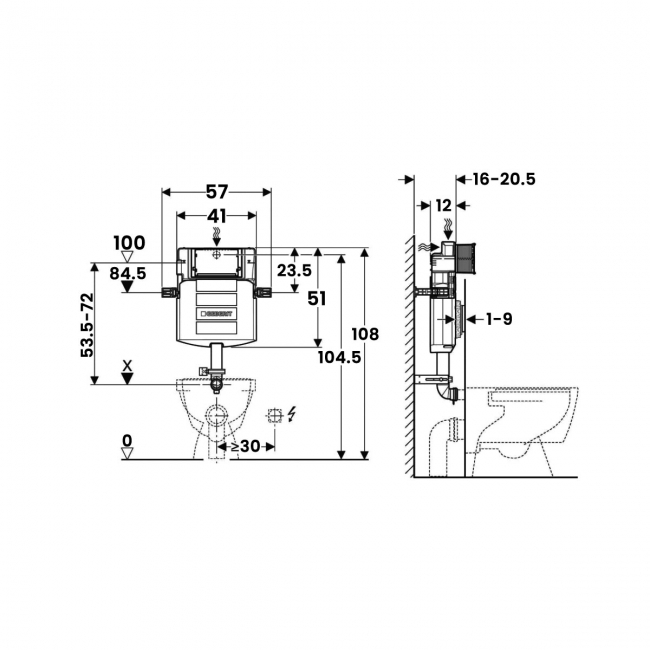

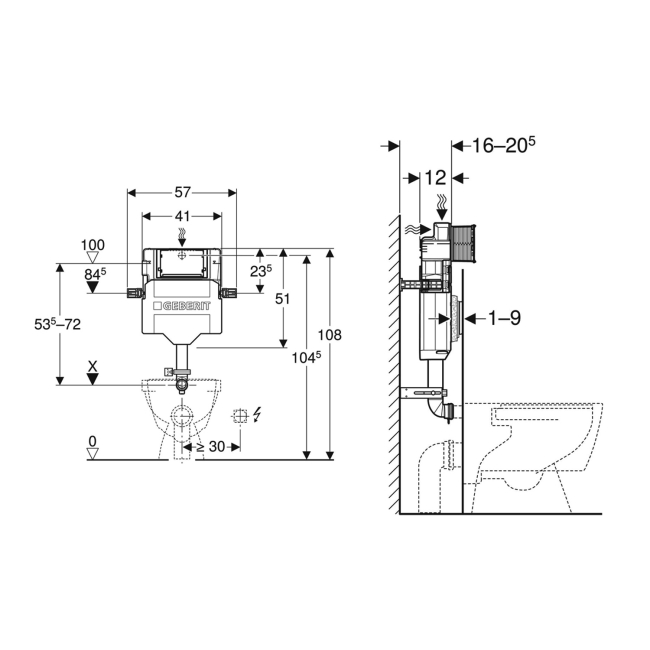

Dimensional Diagram - Geberit Sigma Dual Flush Concealed Cistern for Sigma Flush Plates - White
