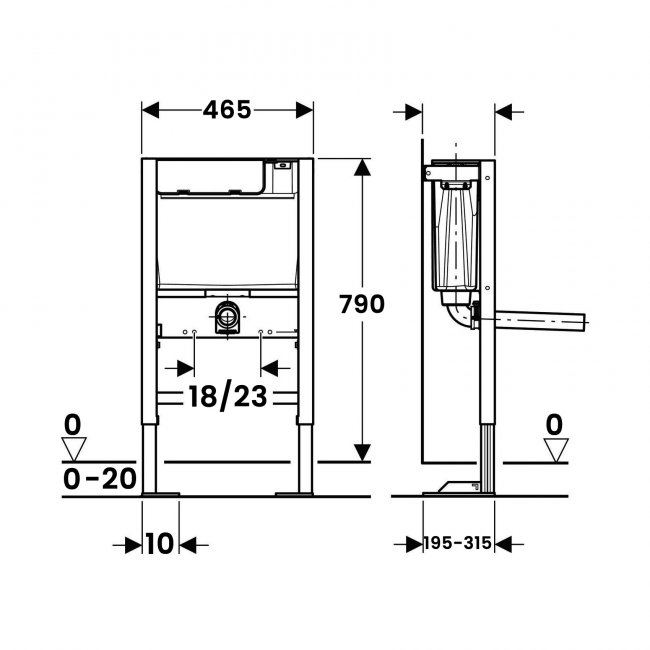

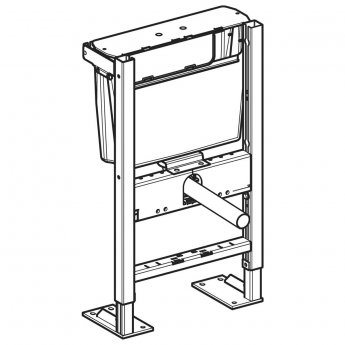

Geberit Duofix WC Toilet Frame 790mm with Low-Height Furniture Cistern

Product Features

• For installation in bathroom furniture with full length front panel (not for use with front plinths)
• For furniture with an internal dimension of 465mm wide, the item can not be used with side plinths
• This frame has been especially designed for use with furniture and furniture clips only
• Includes extension brackets taking the depth up to 335mm
• This frame must not be installed behind the wall
• The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 620mm
• For floor constructions 0-200mm
• Self-supporting frame, powder-coated
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Galvanized feet adjustable 0-200mm
• For drywall construction
• With large foot plates for raised power supply in floors
• Water supply connection 1/2"
• For installation in part-height prewall installations
• Fastening material
• 2 threaded rods M12
• Connection bend 90 degree made of PE-HD, 90 mm
• Adaptor socket made of PE-HD, 90 / 110 mm
• Cup for flush volume reduction 4.0 / 2.6 l
• Connection bend can be mounted without tools at different depths, adjustable range 45mm
• Fastening for connection bend, sound-absorbing
• Flush actuation pneumatic
• Flush pipe connection with compression joint
• Water supply connection on the bottom left
• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25 Degree C
• Flush volume, factory setting 5.8 and 3 l
• Supplied with a 10 year guarantee from the manufacturer

Important Information

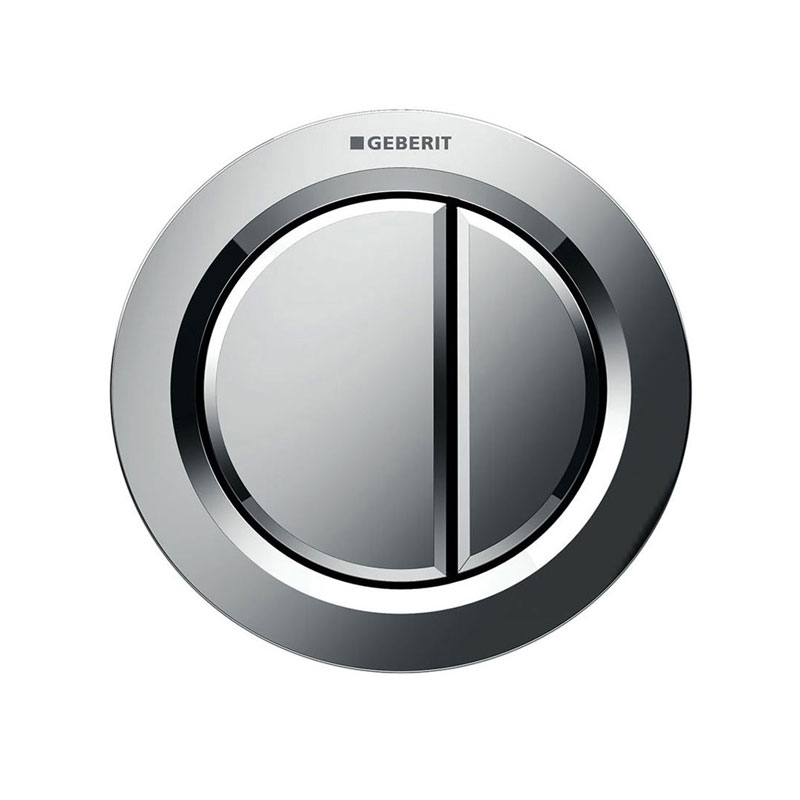

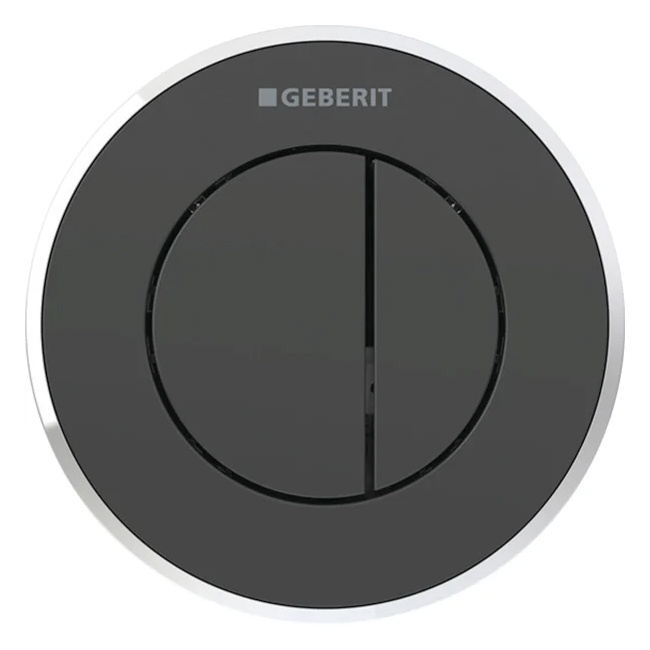

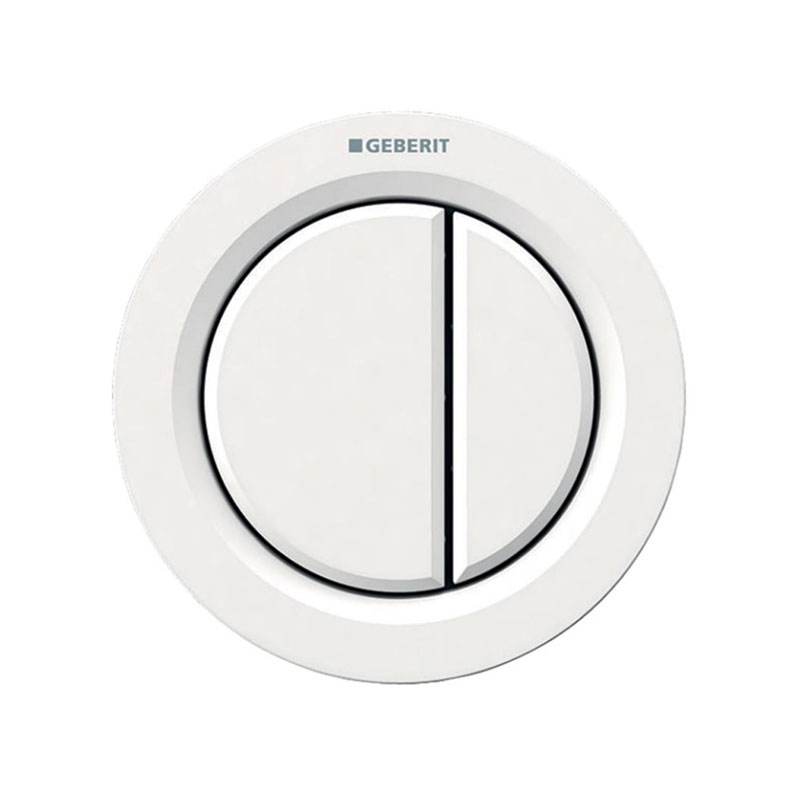

• Push Button sold separately, (See the You May Need)
