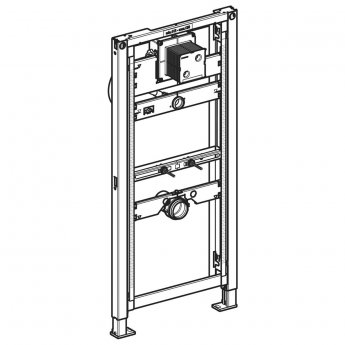

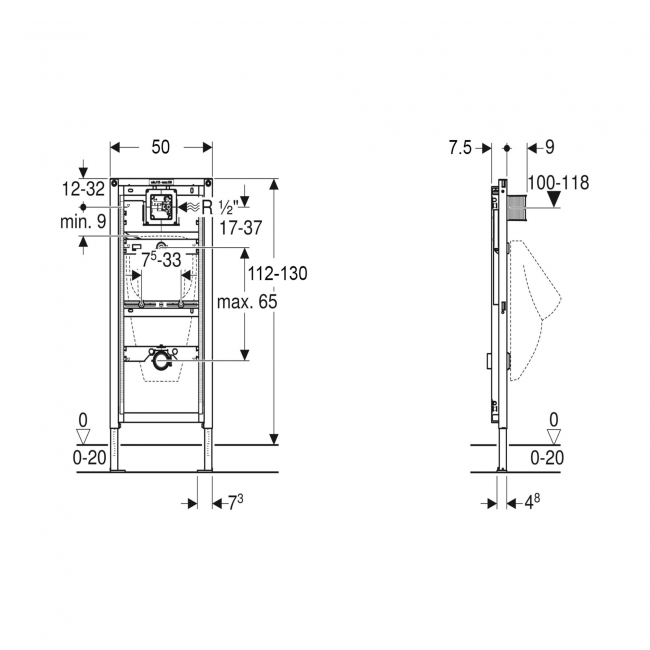

Geberit Duofix Urinal Frame 1120mm x 500mm Blue

Product Features

• Drilled with holes dia 9mm for fastening in wood frame construction
• Galvanised leg supports included, steplessly adjusted to 0 - 200mm
• Comes with C profile 40/40mm
• Legs can be retracted to 5cm
• Supplied with Rotating foot plate, for installation in UW50 and UW75 profiles
• Water supply connection can be installed without tools
• Water supply connection radially sealing
• Stop valve with throttle pre-mounted
• Pre-mounted conduit pipe for rinsing the pipe
• Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
• Foot plates, rotatable, depth suitable for installation in U-profiles UW 50 and UW 75 and Geberit Duofix system rails
• Connection bend can be mounted without tools at different depths, adjustable range 45 mm
• Fastening for connection bend, sound-absorbing
• Concealed cistern with front actuation, fully insulated against condensation
• Tool-free installation and maintenance work on concealed cistern
• Protection cover box for service opening protects against moisture and dirt
• Protection box for service opening can be cut to length
• Equipped with conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Comes with flexible connection hose between concealed housing and inlet
• Urinal fasteners M8 width- and height-adjustable
• Crossbars with centring marks, adjustable without tools
• Supplied with a 10 year guarantee from the manufacturer

Important Information

• Flush plate sold separately, (See the You May Need)
