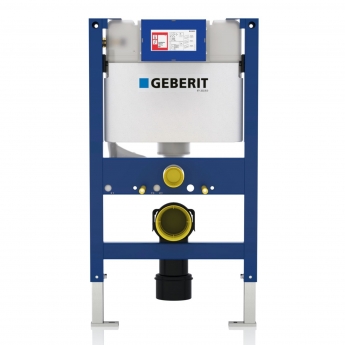

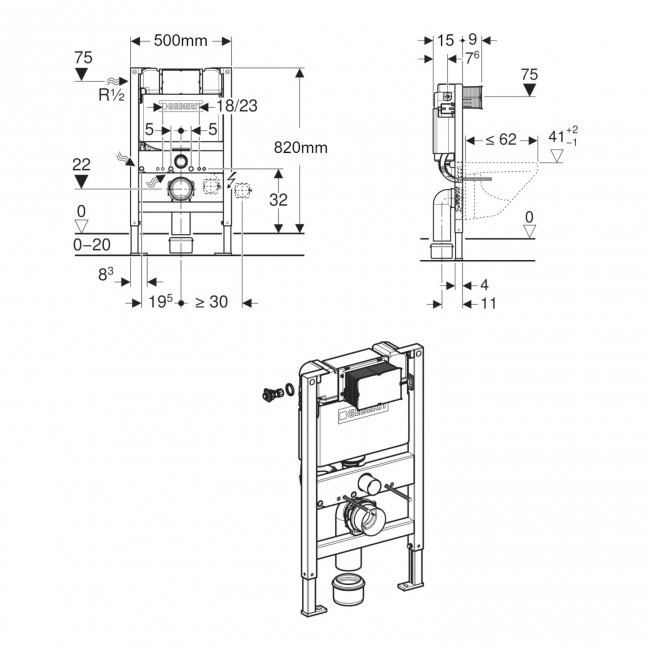

Geberit Duofix Wall Hung Toilet Frame with Kappa Concealed Cistern 500mm W x 820mm H

Product Features

• For drywall construction
• For installation in part-height prewall installations
• For wall-hung WCs with connection dimensions in accordance with EN 33:2011
• For wall-hung WCs with projection up to 62cm
• For floor constructions 0-20cm
• Self-supporting frame, powder-coated
• Galvanized feet
• Feet adjustable 0-20cm
• Concealed cistern with front actuation, fully insulated against condensation
• Cistern fulfils standard requirements in accordance with EN 14055, Class II
• Immediate post flush possible with factory setting
• Water supply connection on the left
• Protection cover box for service opening protects against moisture and dirt, can be cut to length without tools
• With conduit pipe for feed pipe for connection of Geberit AquaClean shower toilets
• Fastening option for electrical connection
• Flow pressure 0.1-10 bar
• Maximum operating temperature, water 25 degree C
• Flush volume, factory setting 5.8 and 3l
• Flush volume small, adjustment range 3-4l
• Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
• Protection box for service opening
• 2 wall anchors
• 2 protection plugs
• Connection set for WC, diameter 90mm
• Connection bend 90 degree made of PE-HD, diameter 90 / 110mm
• Adaptor socket made of PE-HD, diameter 90 / 110mm
• 2 threaded rods M12
• Fastening material
• Supplied with a 25 year guarantee from the manufacturer
